| Type | BNC Compression Connectors |
|---|---|
| UPC | 810053351673 |
| Connector Type | BNC |
| Standards | IEC 60169-8 |
| Tempertaure Range | -25～+85℃ |
| Impedance | 75 Ω |
| Frequency Range | DC～1GHz |
| Working Voltage | 500 V |
| Withstand Voltage | 1500 V |
| Center Contact Resistance | ≤ 1.5 mΩ |
| Outer Contact Resistance | ≤ 1 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| VSWR | ≤ 1.45 |
| Insertion Loss | ≤ 0.5 dB |
| Dimensions | 1 in x 0 in x 0 in |
| Part Number | BNC-10 |

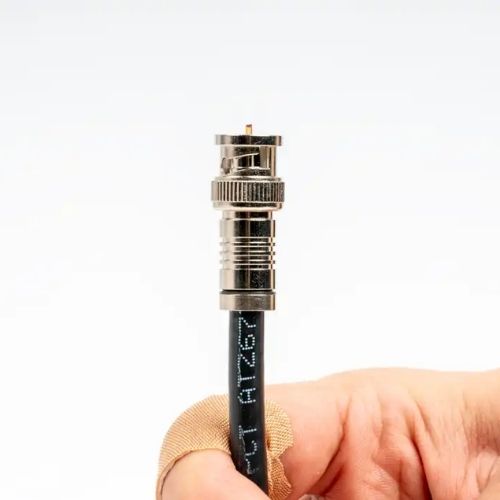

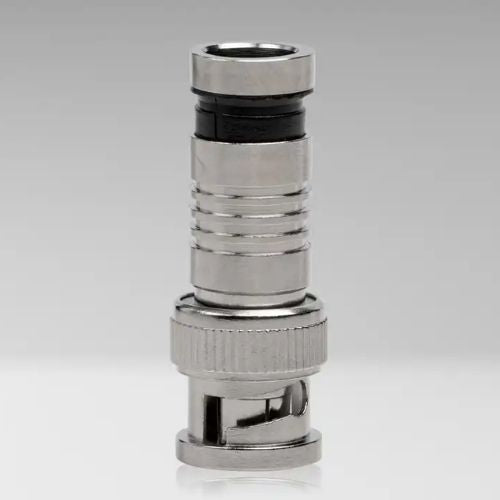

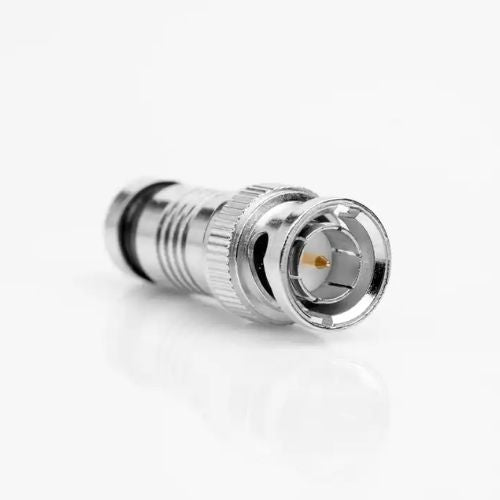

BNC Compression Connectors
Description:

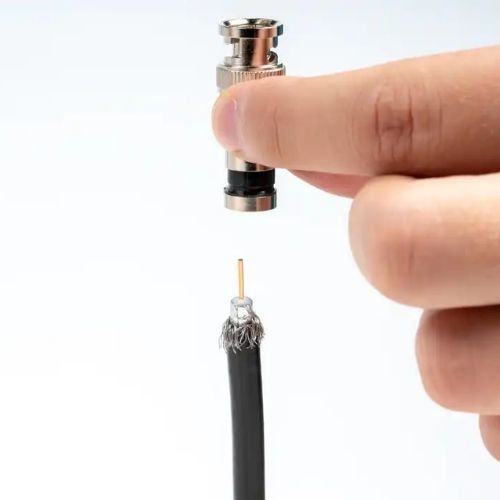

Compatible with most major RG6 cable brands, these BNC connectors enable quick and easy cable termination for CCTV and other video applications.
Features:
⦿ Compatible with Most Major RG6 Cable Brands
⦿ Ideal for Multi-Shield and Plenum-Rated Cables

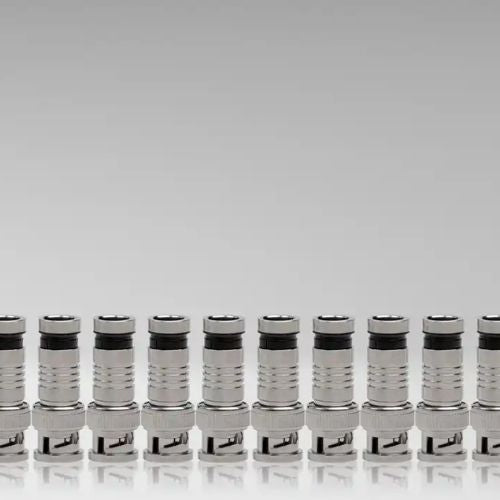

⦿ Includes Ten (10) BNC Connectors
