Product Information

Specification

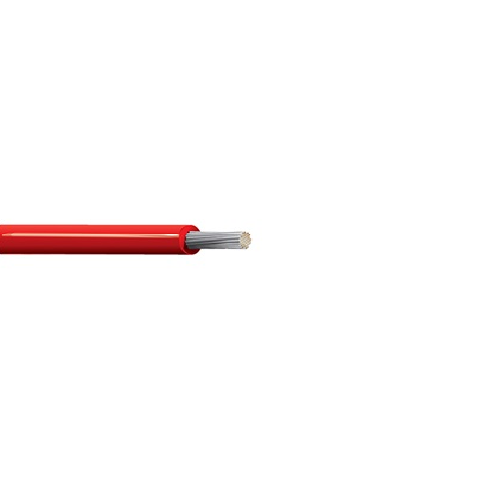

Belden 9906 6 AWG Hook up Wire UL 1015 600V Tinned Copper

Applications:

Belden Hook up Wire UL 1015 600V Tinned Copper is designed for the interconnection circuits and the internal wiring of the appliances and the electronic equipment. At times, they are also used in lighting fixtures and motor leads. The cable has a temperature and voltage rating of 105ºC and 600V. For electronic circuits, it is rated 2500V.

 Also Known As:

9906 6 AWG Belden wire, 9906 6 AWG Belden cable, PVC Cable, Belden Hook-Up Cable, Belden Lead Wire, belden wire and cable, belden wire & cable, belden test lead wire, UL 1015.

Standards:

• UL Style 1015
• TEW
• RoHS Compliant
• EU LV
• EU BFR
• VW-1

Construction:

Conductor:

Stranded Tinned Copper with excellent electrical conductivity and a superior resistance to corrosion.

Insulation:

PVC insulation is resistant to impact, abrasion, chemicals, moisture, and extreme temperatures.

Specification:

Conductor Size AWG: 6 AWGConductor Stranding: 133/27Conductor Material: Tinned CopperOutside Diameter: 0.331 in.Insulation Material: PVC - Polyvinyl ChlorideWeight: 0.123

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color
