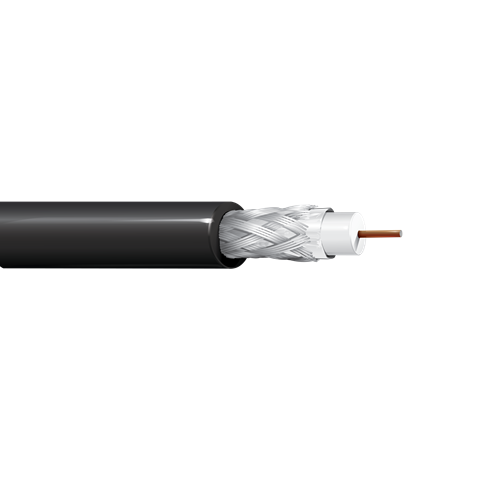

Belden 9116 18 AWG 1 Conductor Solid Series 6 Broadband 75 Ohm Coax Cable

Belden 9116 18 AWG 1 Conductor Solid Series 6 Broadband 75 Ohm Coax Cable
Roll over image to Zoom
Belden 9116 18 AWG 1 Conductor Solid Series 6 Broadband 75 Ohm Coax Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC9116
belden-single-conductor-rg-6-fpe-insulation-catv-broadband-coax-cable

Select a Gauge

Belden 9116 18 AWG 1 Conductor Solid Series 6 Broadband 75 Ohm Coax Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$0.26 /FT
$0.26 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 9116 18 AWG 1 Conductor Solid Series 6 Broadband 75 Ohm Coax Cable

Description:

Broadband Coax, Series 6, 18 AWG Solid Bare Copper Covered Steel Conductor, PE Insulation, Foil + 60% Aluminum Braid Shield, PVC Jacket, CM.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.180 in (4.57 mm)

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duobond II, Coverage 100%

• Layer 2: Outer Shield Type Braid, Aluminum Material, Coverage 60%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.270 in (6.86 mm)
• Overall Cable Diameter (Nominal): 0.270 in (6.86 mm)

Specifications:

• Size (AWG): 18
• Conductor Count: 1
• Stranding: Solid
• Nom. Diameter: 0.040 in
• Series Type: 6
• Impedance: 75 Ohm
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 9116

Manufacturer Equivalents
Anixter : Black : B9116-02ER
White : B9116
Belden : Black : 9116 0101000
White : 9116 0091000
Wirexpress : Black : B9116-02ER
White : B9116



*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet

Reviews

Related Categories

Belden single conductor rg-6 fpe insulation catv broadband coax cable
From $0.21/FT

Related products

Belden 9116P 18 AWG 1 Conductor Solid Series 6 Broadband 75 Ohm Coax Cable
$1.62
$1.62
Belden 9116R 18 AWG 1 Conductor Solid Series 6 Broadband 75 Ohm Coax Cable
$0.32
$0.32

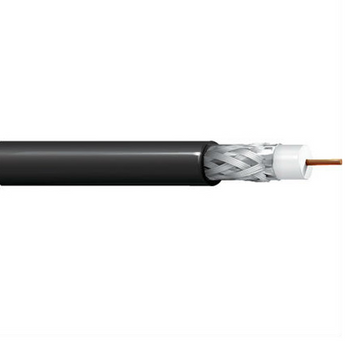

Belden 1545A 18 AWG 1 Conductor Solid RG6 75 Ohm Waterblocked CATV Video Cable
