Belden 89913 10 AWG 1 Conductor Solid RG-8 Wireless Transmission 50 Ohm Coax Cable

Belden 89913 10 AWG 1 Conductor Solid RG-8 Wireless Transmission 50 Ohm Coax Cable
Roll over image to Zoom
Belden 89913 10 AWG 1 Conductor Solid RG-8 Wireless Transmission 50 Ohm Coax Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC89913
belden-rg-8-and-rg-58-broadband-coax-cable

Select a Gauge

Belden 89913 10 AWG 1 Conductor Solid RG-8 Wireless Transmission 50 Ohm Coax Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$16.35 /FT
$16.35 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

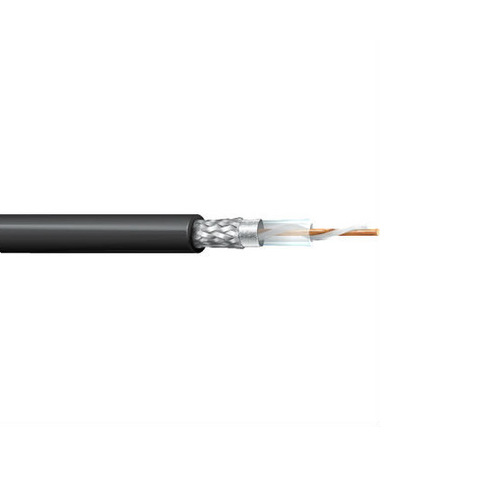

Belden 89913 10 AWG 1 Conductor Solid RG-8 Wireless Transmission 50 Ohm Coax Cable

Description:

50 Ohm Wireless Transmission Coax, RG-8, 10 AWG Solid Bare Copper Conductor, FEP Insulation, Foil + 90% Tinned Copper Braid Shield, PVDF Jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Insulation Diameter: 0.292 in (7.42 mm)
• Solid FEP monofilament spiral around conductor. Solid FEP tube over monofilament

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Duobond II Material Trade Name, Coverage 100%

• Layer 2: Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage 90%

Outer Jacket:

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Diameter: 0.360 in (9.14 mm)
• Overall Cable Diameter (Nominal): 0.360 in (9.14 mm)

Applications:

• Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio
Frequency Identification)

Specifications:

• Size (AWG): 10
• Conductor Count: 1
• Stranding: Solid
• Nom. Diameter: 0.108 in
• Impedance: 50 Ohm
• RG Type: 8
• Conductor Material: BC - Bare Copper
• Part Number: 89913

Manufacturer Equivalents
Anixter : Black : B89913
Belden : Black : 89913 0101000
Wirexpress : Black : B89913



*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
