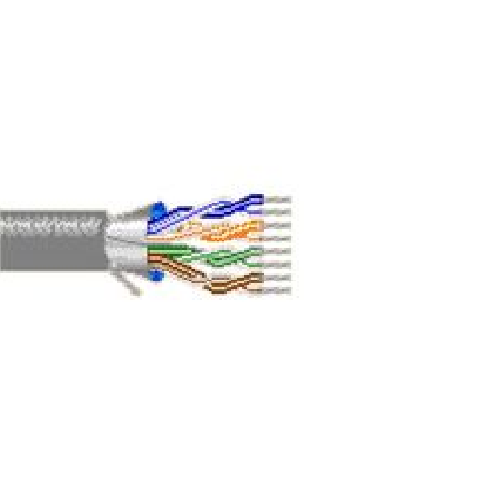

Belden 7839A 22 AWG 6 Pair Solid Tinned Copper 300V T1/DS1 Central Office Cable

Belden 7839A 22 AWG 6 Pair Solid Tinned Copper 300V T1/DS1 Central Office Cable
Roll over image to Zoom
Belden 7839A 22 AWG 6 Pair Solid Tinned Copper 300V T1/DS1 Central Office Cable
Roll over image to Zoom
Belden 7839A 22 AWG 6 Pair Solid Tinned Copper 300V T1/DS1 Central Office Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC7839A

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$2.79 /FT
$2.79 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 7839A 22 AWG 6 Pair Solid Tinned Copper 300V T1/DS1 Central Office Cable

Description:-

22 AWG solid tinned copper conductors, 6 twisted pairs, flame-retardant polyolefin insulation, overall Beldfoil shield (100% coverage), 22 AWG solid tinned copper drain wire, PVC jacket.

Insulation:-

• Material: PO - Polyolefin

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.38 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 100 Ohm
• Operating Temperature Range: -20°C To +75°C

Specifications:-

• Size (AWG): 22
• No. of Pairs: 6
• Stranding: Solid
• Conductor Material: TC - Tinned Copper
• Part Number: 7839A


*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
