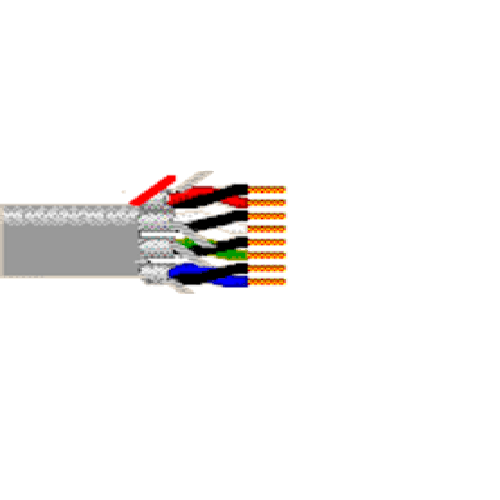

Belden 6345PC 18 AWG 6 Pair 7x26 Stranding Bare Copper 300V Security and Sound Cable

Name: Belden 6345PC 18 AWG 6 Pair 7x26 Stranding Bare Copper 300V Security and Sound Cable
Brand: Belden Cable
SKU: NNC6345PC
Price: 4.22 USD
Availability: InStock
Rating: 4.89 (8759 reviews)

Roll over image to Zoom

Belden 6345PC 18 AWG 6 Pair 7x26 Stranding Bare Copper 300V Security and Sound Cable

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC6345PC

Select a Gauge

Belden 6345PC 18 AWG 6 Pair 7x26 Stranding Bare Copper 300V Security and Sound Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $4.22 /FT
Sale price: $4.22 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 6345PC 18 AWG 6 Pair 7x26 Stranding Bare Copper 300V Security and Sound Cable

Description:-

Security, Pro Audio and Intercom Cable, 6 Pair 18 AWG stranded (7x26) bare copper pairs with FEP insulation, Individually Beldfoil shielded, Plenum, Flamarrest jacket.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.0095 in (0.24 mm)
• Nom. Insulation Diameter: 0.0655 in (1.66 mm)

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Diameter: 0.402 in
• Overall Cable Diameter (Nominal): 0.402 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Specifications:-

• Size (AWG): 18
• No. of Pairs: 6
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 6345PC

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color

Download PDF Spec Sheet
