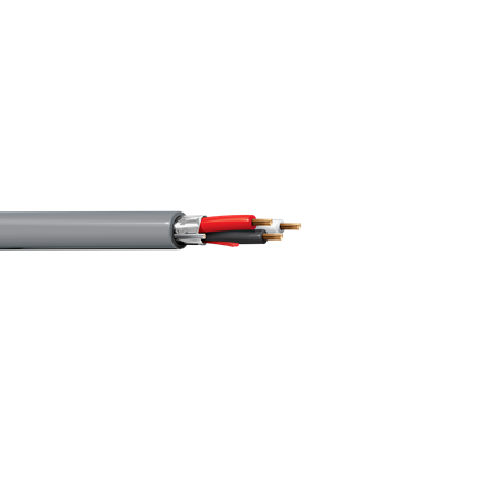

Belden 5101UE 14 AWG 3 Conductor 19x26 Stranding Bare Copper 300V Security and Commercial Audio Cable

Belden 5101UE 14 AWG 3 Conductor 19x26 Stranding Bare Copper 300V Security and Commercial Audio Cable
Roll over image to Zoom
Belden 5101UE 14 AWG 3 Conductor 19x26 Stranding Bare Copper 300V Security and Commercial Audio Cable
Roll over image to Zoom
Belden 5101UE 14 AWG 3 Conductor 19x26 Stranding Bare Copper 300V Security and Commercial Audio Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC5101UE
belden-multi-conductor-cmr-riser-unshielded-300v-commercial-audio-system-cable

Select a Gauge

Belden 5101UE 14 AWG 3 Conductor 19x26 Stranding Bare Copper 300V Security and Commercial Audio Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$1.20 /FT
$1.20 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 5101UE 14 AWG 3 Conductor 19x26 Stranding Bare Copper 300V Security and Commercial Audio Cable

Description:

Security and Commercial Audio Cable, Riser-CL3R, 3-14 AWG stranded (19x27) bare copper conductors with polypropylene insulation, Riser, PVC jacket with ripcord.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.092 in (2.3 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.232 in (5.89 mm)
• Overall Cable Diameter (Nominal): 0.232 in (5.89 mm)

Standards:

• Voltage Rating: 300 V (CL3R)
• Operating Temperature: -20°C to +75°C

Applications:

• Intercom/PA Systems, Sound/Audio Systems

Specifications:

• Size (AWG): 14
• No. of Conductor: 3
• Stranding: 19x26
• Conductor Material: BC - Bare Copper
• Part Number: 5101UE


*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
