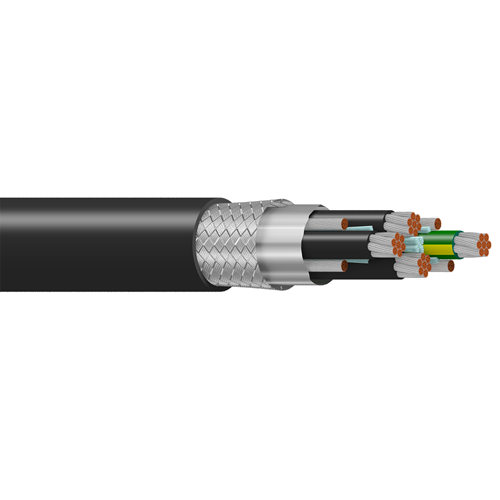

Belden 29505F 6 AWG 3 Conductor 7x37x30 Stranding 1000V Variable Frequency Drives Cable

Name: Belden 29505F 6 AWG 3 Conductor 7x37x30 Stranding 1000V Variable Frequency Drives Cable
Brand: Belden Cable
SKU: NNC29505F
Price: 26.35 USD
Availability: InStock
Rating: 4.91 (8361 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC29505F

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $26.35 /FT
Sale price: $26.35 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 29505F 6 AWG 3 Conductor 7x37x30 Stranding 1000V Variable Frequency Drives Cable

Description:

Belden 100% Ground Extra Flexible VFD, 3 Conductor 6AWG (7x37x30) Tinned Copper XLPE Insulation M4 Color Code + 6AWG Symmetrical Segmented Ground (3 of 10AWG) Tinned Copper Stranded, Overall Beldfoil+Tinned Copper Braid(85%) Shield, Black TPE Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable 1000V WTTC 600V CIC TC SUN RES OIL RES II DIR BUR.

Insulation:

Element: Conductor(s):-
Material: XLPE - Cross-Linked Polyethylene (Thermoset)
Nom. Thickness: 0.062 in (1.6 mm)

Element: Ground:-
Material: PVC - Polyvinyl Chloride
Nom. Thickness: 0.062 in (1.6 mm)

Outer Shield:

• Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Coverage 100%

• Shield Type Braid, Tinned Copper (TC) Material, Coverage 85%

Outer Jacket:

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.095 in (2.4 mm)
• Nom. Diameter: 0.961 in (24.4 mm)
• Overall Cable Diameter (Nominal): 0.961 in (24.4 mm)

Applications:

• Variable Frequency Drives (VFD); AC Motor and Drive Systems, Exposure to high flex, motion, and abrasion, Hard to reach installation areas

Specifications:

Element: Conductor(s):-
• Size (AWG): 6
• No. of Conductor: 3
• Stranding: 7x37x30
• Conductor Material: TC - Tinned Copper

Element: Ground:-
• Size (AWG): 6
• No. of Elements: 3
• Stranding: 105x30
• Conductor Material: TC - Tinned Copper
• Part Number: 29505F

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color
