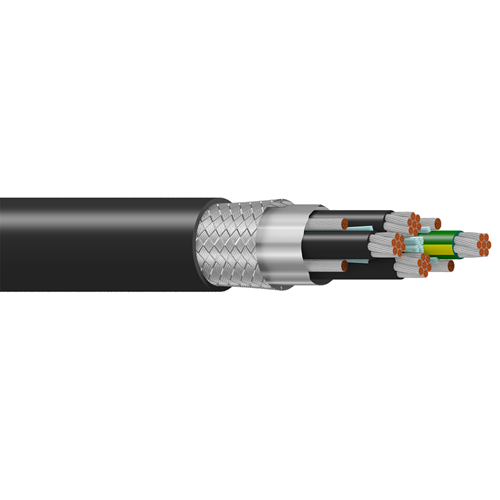

Belden 29505 6 AWG 3 Conductor 7x19x27 Stranding 1000V Variable Frequency Drives Cable
Description:
Belden 300% Ground Flexible VFD, 3 Conductor 6AWG (7x19x27) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil+Tinned Copper Braid(85%) Shield w/4-12AWG Tinned Copper Ground/Drains, Black PVC Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable WTTC 1000V CSA AWM I/II A/B 600V CIC TC SUN RES DIR BUR Oil Resistant.
Insulation:
Element: Conductor(s):-
Material: XLPE - Cross-Linked Polyethylene (Thermoset)
Nom. Thickness: 0.062 in (1.6 mm)
Nom. Insulation Diameter: 0.319 in (8.10 mm)
Element: Insulated Ground:-
Material: PVC - Polyvinyl Chloride
Nom. Thickness: 0.062 in (1.6 mm)
Nom. Insulation Diameter: 0.319 in (8.10 mm)
Outer Shield:
• Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Coverage 100%, Drainwire Type 12 AWG (65x30) TC
• Shield Type Braid, Tinned Copper (TC) Material, Coverage 85%
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.095 in (2.4 mm)
• Nom. Diameter: 1.002 in (25.45 mm)
• Overall Cable Diameter (Nominal): 1.002 in (25.45 mm)
Applications:
• Variable Frequency Drives (VFD); AC Motor and Drive Systems; Recommended Cable Gland Belden BTC125A1271RA
Specifications:
Element: Conductor(s):-
• Size (AWG): 6
• No. of Conductor: 3
• Stranding: 7x19x27
• Conductor Material: TC - Tinned Copper
Element: Insulated Ground:-
• Size (AWG): 6
• No. of Elements: 1
• Stranding: 7x19x27
• Conductor Material: TC - Tinned Copper
Element: Uninsulated Ground Wire:-
• Size (AWG): 12
• No. of Elements: 4
• Stranding: 65x30
• Conductor Material: TC - Tinned Copper
• Part Number: 29505
Element: Conductor(s):-
• Size (AWG): 6
• No. of Conductor: 3
• Stranding: 7x19x27
• Conductor Material: TC - Tinned Copper
Element: Insulated Ground:-
• Size (AWG): 6
• No. of Elements: 1
• Stranding: 7x19x27
• Conductor Material: TC - Tinned Copper
Element: Uninsulated Ground Wire:-
• Size (AWG): 12
• No. of Elements: 4
• Stranding: 65x30
• Conductor Material: TC - Tinned Copper
• Part Number: 29505
|
Manufacturer Equivalents |
|
| Alpha Wire : |
Black : V16006 |
| Anixter : | Black : 3ACD-0603FB-1KV-B |
| Belden : | Black : 29505 0103500 |
| LAPP : | Black : 760204 |
| Omni Cable : | Black : BEL29505 |
| Wirexpress : | Black : 3ACD-0603FB-1KV-B |
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
