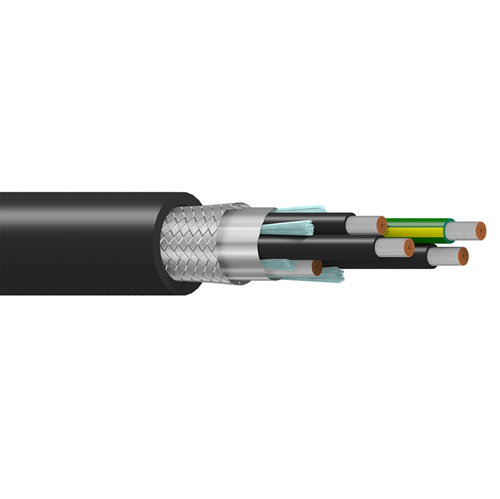

Belden 29503F 10 AWG 3 Conductor 7x37x34 Stranding 1000V Variable Frequency Drives Cable

Description:

Belden 300% Ground Extra Flexible VFD, 3 Conductor 10AWG (7x37x34) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil+Tinned Copper Braid(85%) Shield w/10AWG Tinned Copper Drain, Black TPE Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable 1000V WTTC 600V CIC TC SUN RES OIL RES II DIR BUR.

Insulation:

Element: Conductor(s):-
Material: XLPE - Cross-Linked Polyethylene (Thermoset)
Nom. Thickness: 0.046 in (1.2 mm)

Element: Ground:-
Material: PVC - Polyvinyl Chloride
Nom. Thickness: 0.046 in (1.2 mm)

Outer Shield:

• Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Coverage 100%

• Shield Type Braid, Tinned Copper (TC) Material, Coverage 85%

Outer Jacket:

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.073 in (1.9 mm)
• Nom. Diameter: 0.716 in (18.2 mm)
• Overall Cable Diameter (Nominal): 0.716 in (18.2 mm)

Applications:

• Variable Frequency Drives (VFD); AC Motor and Drive Systems, Exposure to high flex, motion, and abrasion, Hard to reach installation areas

Specifications:

Element: Conductor(s):-
• Size (AWG): 10
• No. of Conductor: 3
• Stranding: 7x37x34
• Conductor Material: TC - Tinned Copper

Element: Ground:-
• Size (AWG): 10
• No. of Elements: 1
• Stranding: 7x37x34
• Conductor Material: TC - Tinned Copper
• Part Number: 29503F

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color
