Belden 29503 10 AWG 3 Conductor 105x30 Stranding 1000V Variable Frequency Drives Cable

Name: Belden 29503 10 AWG 3 Conductor 105x30 Stranding 1000V Variable Frequency Drives Cable
Brand: Belden Cable
SKU: NNC29503
Price: 8.63 USD
Availability: InStock
Rating: 4.91 (8361 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC29503

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $8.63 /FT
Sale price: $8.63 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 29503 10 AWG 3 Conductor 105x30 Stranding 1000V Variable Frequency Drives Cable

Description:

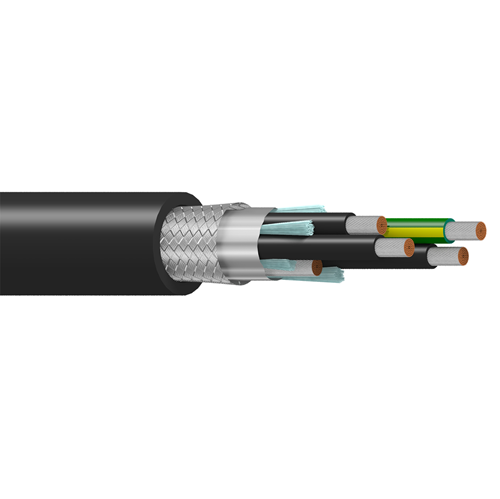

Belden 300% Ground Flexible VFD, 3 Conductor 10AWG (105x30) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil+Tinned Copper Braid(85%) Shield w/10AWG Tinned Copper Ground/Drain, Black PVC Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable WTTC 1000V CSA AWM I/II A/B 600V CIC TC SUN RES DIR BUR Oil Resistant.

Insulation:

Element: Conductor(s):-
Material: XLPE - Cross-Linked Polyethylene (Thermoset)
Nom. Thickness: 0.046 in (1.2 mm)
Nom. Insulation Diameter: 0.212 in (5.38 mm)

Element: Insulated Ground:-
Material: PVC - Polyvinyl Chloride
Nom. Thickness: 0.046 in (1.2 mm)
Nom. Insulation Diameter: 0.212 in (5.38 mm)

Outer Shield:

• Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Coverage 100%, Drainwire Type 10 AWG (105x30) TC

• Shield Type Braid, Tinned Copper (TC) Material, Coverage 85%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.073 in (1.9 mm)
• Nom. Diameter: 0.690 in (17.5 mm)
• Overall Cable Diameter (Nominal): 0.690 in (17.5 mm)

Applications:

• Variable Frequency Drives (VFD); AC Motor and Drive Systems; Recommended Cable Gland Belden BTC100A0791RA

Specifications:

Element: Conductor(s):-
• Size (AWG): 10
• No. of Conductor: 3
• Stranding: 105x30
• Conductor Material: TC - Tinned Copper

Element: Insulated Ground:-
• Size (AWG): 10
• No. of Elements: 1
• Stranding: 105x30
• Conductor Material: TC - Tinned Copper

Element: Uninsulated Ground Wire:-
• Size (AWG): 10
• No. of Elements: 1
• Stranding: 105x30
• Conductor Material: TC - Tinned Copper
• Part Number: 29503

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color

Download PDF Spec Sheet
