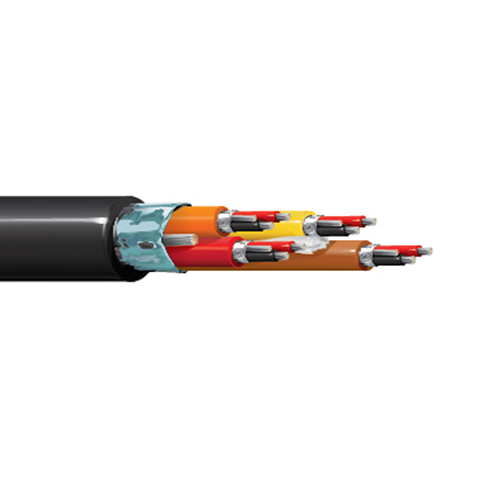

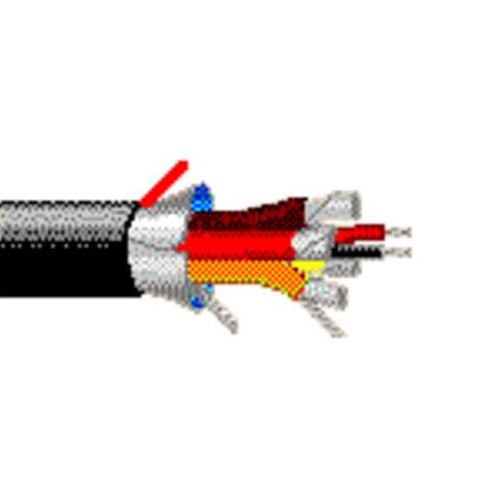

Belden 1815WB 22 AWG 4 Pair 7x30 Stranding Tinned Copper 300V Audio Snake Cable

Name: Belden 1815WB 22 AWG 4 Pair 7x30 Stranding Tinned Copper 300V Audio Snake Cable
Brand: Belden Cable
SKU: NNC1815WB
Price: 4.98 USD
Availability: InStock
Rating: 4.89 (8751 reviews)

Roll over image to Zoom

Belden 1815WB 22 AWG 4 Pair 7x30 Stranding Tinned Copper 300V Audio Snake Cable

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC1815WB

Select a Gauge

Belden 1815WB 22 AWG 4 Pair 7x30 Stranding Tinned Copper 300V Audio Snake Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $4.98 /FT
Sale price: $4.98 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 1815WB 22 AWG 4 Pair 7x30 Stranding Tinned Copper 300V Audio Snake Cable

Description:-

Audio Snake Cable, 4 Pair 22 AWG (7 x 30) Tinned Copper, PP Insulation, Individually Foil Shielded and PVC Jacketed, Overall Beldfoil Shield, Waterblocking Tape, PE Outer Jacket.

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.05 in (1.3 mm)

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage [%]: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage [%]: 100%
• Drainwire Type: 18 AWG (19x30) TC - Tinned Copper
• Waterblocking: Waterblock Tape

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.133 in (3.38 mm)

Outer Jacket:-

• Material: PE - Polyethylene
• Nom. Thickness: 0.030 in (0.76 mm)
• Nom. Diameter: 0.417 in (10.6 mm)
• Overall Cable Diameter (Nominal): 0.417 in (10.6 mm)
• Outer Jacket1 Table Notes: HDPE

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 50 Ohm
• Operating Temperature Range: -20°C To +60°C

Applications:-

• Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio; Below-grade, wet-locations

Specifications:-

• Size (AWG): 22
• No. of Pairs: 4
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 1815WB

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color

Download PDF Spec Sheet
