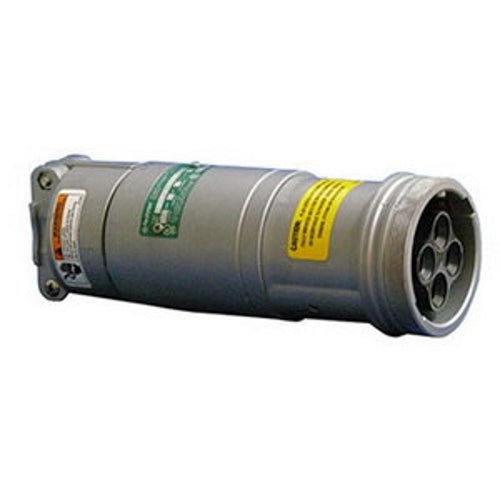

Appleton ARC3044BC 4W-4P Connector Body
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Compressor, Motor Generator Unit, Pump, Welding |
| Number of Wires | 4 |
| Grounding Style | 1-Shell |
| Minimum Cable Outer Diameter | 0.5 Inch |
| Maximum Cable Outer Diameter | 1.25 Inch |
| Material | Epoxy Powder Coated Copper-Free Aluminum |
| Approval | UL, CSA |
| Model | ARC |
| Constructional Feature | Weatherproof, Rain Tight |
| Voltage Rating | 600 Volt AC at 50 to 400 Hertz, 250 Volt DC |
| Current Rating | 30 Amp |
| Number of Poles | 4 |
| Manufacturer Brand | Appleton Electric |
| Category | Pin & Sleeve Devices |
| Sub-Category | Pin and Sleeve Connector |
| Part Number | ARC3044BC |
Description :-:
Positive Polarization, Circuit Breaking, Compressor, Motor Generator Unit, Pump, Welder, Cellular Relay Station Type; Epoxy Powder Coated Copper-Free Aluminum Material; 0.5 Inch min. Cable Outer Diameter; 1.125 Inch Max. Cable Outer Diameter; 4 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 30 Amp Current Rating; 4 Pole(S); Weatherproof; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 0.281 Inch; Contact Material Copper; Insulating Block Material Fiberglass Reinforced Polyester; Enclosure Rating NEMA 3/4/4X; Applicable Standard Nec/Cec.
