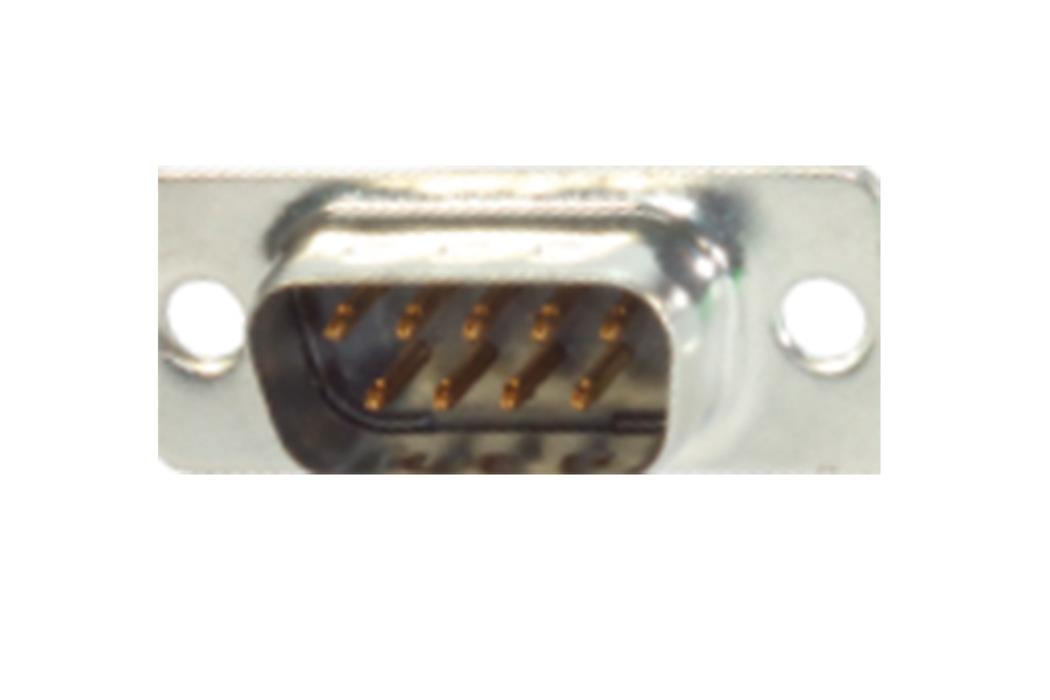

Angular Signal Connector MAT01716508
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
General properties
| Design |
Angular connector |
| Solder insert |
pin 9-pole standard |
| Material |
Zinc die-casting, nickel plated |
| Insulation body |
Glass fiber reinforced polyester |
| Contacts |
Copper alloy, flash gold-plated |
| SpeedTec |
No |
Electrical Properties
| Max. continuous nominal current |
5 A |
| Nominal voltage (AC/DC) |
(L-L) 1200 V |
| Testing voltage |
1016 Ω/cm |
| Contact resistance |
50 |
Angular Signal Connector MAT01716508
Description
• It is Angular Signal Connector . It is Zinc die-casting nickel plated material. It's Temperature range -31°F to +212°F. It Contact is Copper alloy flash gold plated.
Specification
• Design: Angular connector
• Material: Zinc die-casting, nickel plated
• Insulation body: Glass fiber reinforced polyester
• Contacts: Copper alloy, flash gold-plated
• Max. continuous nominal current: 5 A
• Testing voltage: (L-L) 1200 V
• Contact resistance: 1016 Ω/cm
• Insertion cycles: 50
• Temperature range: -31°F to +212°F
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
