Specification
Temperature Measurement
| Parameter | Range | Resolution | Accuracy |
| Flue temperature | 32˚ to 1112˚F | 0.1˚F | ±(0.3% rdg +3.6˚F (2˚C)) |
| Inlet temperature (internal sensor) | 32˚ to 1112˚F | 0.1˚F | +1.8˚C +0.3% rdg |
| Inlet temperature (external sensor) | 32˚ to 1112˚F | 0.1˚F | +1.8˚C +0.3% rdg |
Flue Gas
| Parameter | Range | Resolution | Accuracy |
| Oxygen | 0 to 21% | 0.1% | +0.3% Volume |
| Carbon Monoxide | 0 to 2000ppm 2000 to 9999ppm Above 9999ppm |
1ppm | ±3ppm or ±5% of rdg ±10% of rdg Unspecified |
| Carbon Dioxide | 0 to 20% | 0.1% | 0.3% rdg |
| Efficiency (Net or Gross) | 0 to 99.9% | 0.1% | +1.0% rdg |
| Efficiency High (C) | 0 to 119.9% | 0.1% | +1.0% rdg |
| Excess Air | 0 to 250% | 0.1% | +0.2% rdg |
| CO/CO2 ratio | 0 to 0.999% | 0.0001 | +5% rdg |
Pressure (Differential)
| Parameter | Range | Resolution | Accuracy |
| Pressure (Differential) | ±80mbar | 0.1mbar | ±0.5% FSD |
| Pre-programmed Fuels | NAT GAS, H OIL, PELLETS, OIL, LPG, BUTANE, PROPANE | - | - |
| User Programmed Fuels | 5 User-defined fuels | - | - |
| Storage Capacity | 45 Total Tests | - | - |
Advanced Combustion Analyzer For Commercial Boilers and Furnaces
Description
The UEi ACA is our first combustion analyzer, which is backed by UEi Service
The ACA features a new high-contrast graphic display, a new flue probe with integrated pressure readings, an H2 compensated 10,000 ppm CO sensor with purge pump protection, and wireless probe connection for use with optional wireless pipe clamp probes.
ACA allows techs to print to an optional printer through the IR port for hard copies or wirelessly to a compatible device using the KANE LIVE App to record and email results.
Features
• Ambient CO2 readings to test building IAQ
• Integrate optional wireless probes
• CO over-range pump protection from high CO levels

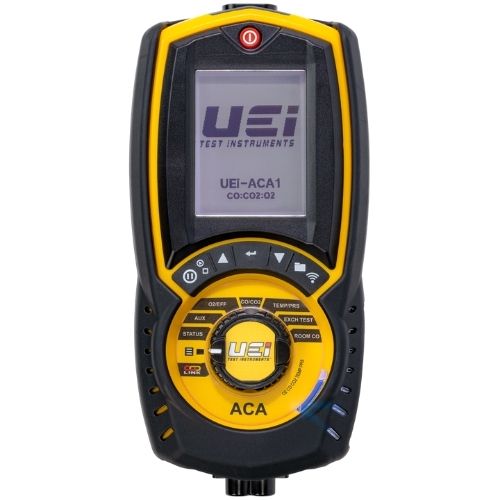

• High-contrast graphic display
• UEi LOCK Theft Protection: Coming Soon (details below)
• UEi Concierge+ 15-min analyzer review with a tech
• CO sensor, 10,000ppm H2 Compensated & NOx filtered
• CO2 sensor (flue or ambient)
• O2, sensor
• Differential Pressure and draft
• Flue and Inlet Temperature, differential temperature
• Combustion Efficiency and Excess Air
• Heat Exchanger test
• Room CO test
• Optional NO (Nitric Oxide) sensor upgradable
• Protective Boot with built-in magnetic mount
• Low Flow Detection to protect reading accuracy

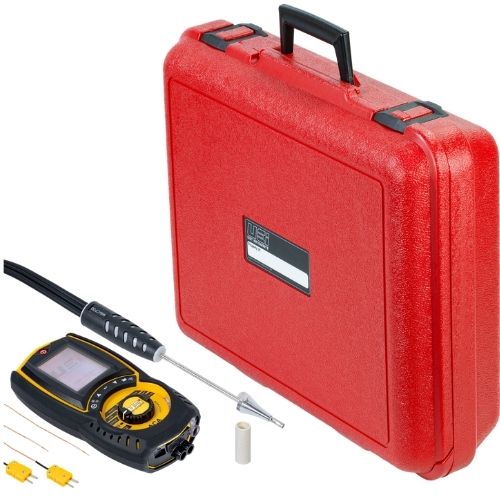

• Flue probe with integrated gas, temperature, and draft hose connections

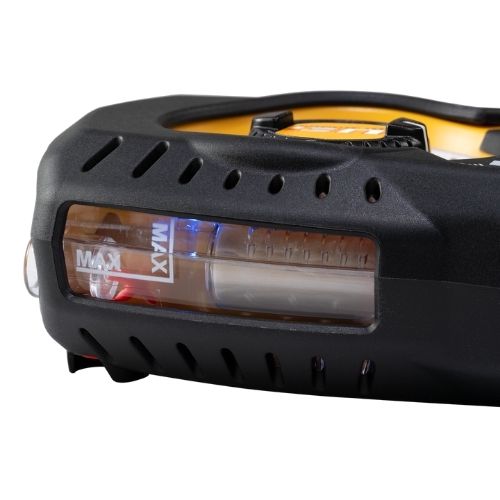

• Protective water trap
• Calibration countdown reminders
• Optional thermal printer for on-site hard copy printouts
