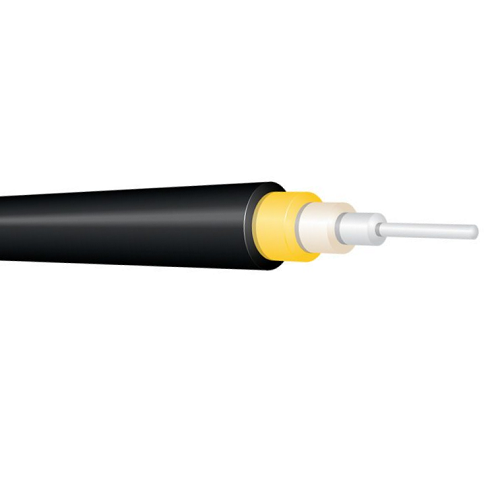

A-Series Deployable Single Fiber Black Cable A-002CWST5KM

Product Information

Specification

• TFC = Tactical field cable for ground-based deployment
• LBD = Land-based deployment for communications or remote vehicle control
• HAD = High-speed air-deployable from coil packs

Payout Cables

APPLICATIONS:

• Payout from precision coil packs
• Detailed design is based on the environment, payout speed, cable length, and cable physical properties

FEATURES:

• Precise outer jacket diameter tolerances
• Relatively stiff and hard jacket materials to reduce friction and avoid kinking after payout
• As strong, crush-proof and survivable as their small size allows
• 500µm primary acrylate buffer
• Some include a secondary 900µm buffer
• Can use 200 kpsi fiber

Land and Air Rapid Payout Cables

APPLICATIONS:

• High-speed land or air-deployed cable
• Land deployments up to 60 mph (100 kph)
• Air deployment up to 130 mph (210 kph)

FEATURES:

• Hard elastomeric pressure-extruded outer jacket to ensure mechanical integrity under stress
• Designed to withstand crush and impact after deployment
• Land-deployable cables are commonly 2.5mm and 2.0mm
• Long continuous lengths

Simplex Military Tactical Cables

APPLICATIONS

• Temporarily deployed cables that can be retrieved for repeated use

FEATURES:

• Wide temperature range (typically -55°C to 85°C)
• 500µm primary acrylate buffer with 900µm secondary hard elastomeric buffer (Ultra Fox Plus)
• Excellent crush and impact resistance due to their polyurethane Core-Locked™ outer jacket
• Strong, lightweight and extremely durable cable
• 2.5, 2.9, 4.0 and 4.5mm cable designs available depending on the application
