96 Fiber Singlemode Outdoor Dri-Lite Loose Tube Single Jacket All Dielectric Black 11096KD0L

Product Information

Specification

About :

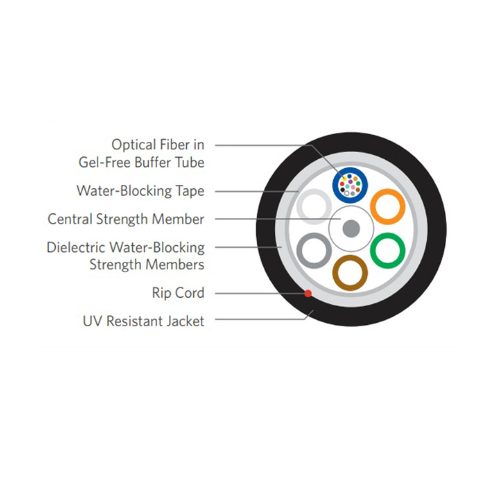

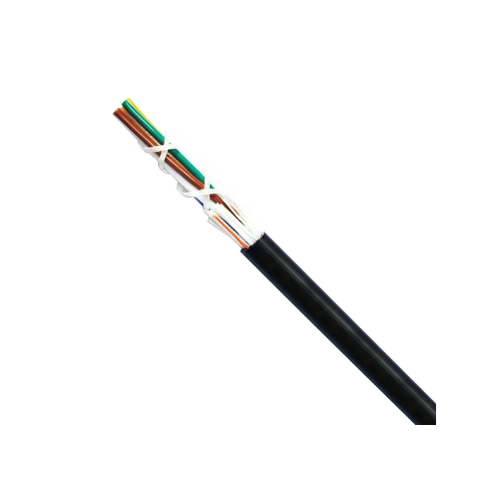

Loose tube cables are the product of choice as the backbone in Outside Plant (OSP) environments. The durable loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL). The core is wrapped with flexible strength members covered with a water-blocking tape, then encased with a black jacket. A rip cord is included under the jacket for ease of entry.

Also Known as :

96 Fiber Cable, Outside Plant Cable, Single Mode Cable, Fiber Optic Cable.

Specifications :

Standards Compliance:

• Telcordia GR-20-CORE
• RDUP PE-90 Designation MLT
• ICEA S-87-640-2011
• RoHS-compliant

Applications:

• Underground duct and lashed aerial
• Trunk, distribution and feeder cable
• Local loop, metro, long-haul and broadband network
