| Type | COAX Stripper |
|---|---|
| UPC | 811490018044 |
| Cable Type | Mini COAX |
| Cable Size | Mini COAX |
| Strip Length | Braid: 0.354" (9 mm), Center Conductor: 0.276" (7 mm) |
| Dimensions | 4.26 in x 1.19 in x 1.69 in |
| Part Number | CSS-59M |

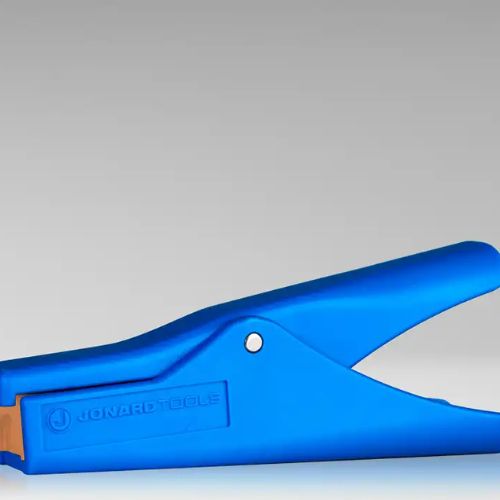

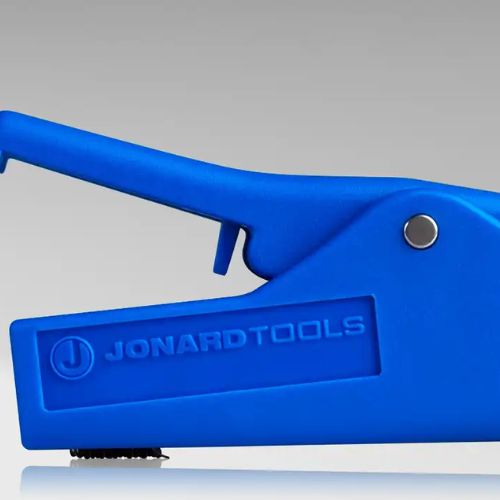

9 mm and 7 mm Mini COAX Stub End Stripper
Description:
The CSS-59M coaxial cable stripper is specifically designed to strip the stub end of mini coax cables in wall outlets, exposing 9 mm of braid and 7 mm of center conductor, eliminating the need to run new cable.
Features:
⦿ Easy to use: insert the cable, rotate like a screwdriver, and remove to strip
⦿ Designed to avoid cutting the braid or scoring the center conductor
⦿ High-carbon steel blades provide over 5,000 strips per side
⦿ Integrated hook-and-loop strip folds back cable braid after stripping
⦿ Compatible with additional blade cartridges: CSS-105/110/115/120/125/130
⦿ Replacement blade cartridge: CSS-135
⦿ Blade Replacement Instructions
⦿ To remove the blade cartridge: open jaws and push upward on the front of the cartridge until it lifts out
⦿ To install a new cartridge: insert it into the tool, close the jaws, and squeeze to ensure the blade locks securely
