8 Wire Lead Frame Keystone Unshielded Jack Module Violet NK5E88MVLY
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:

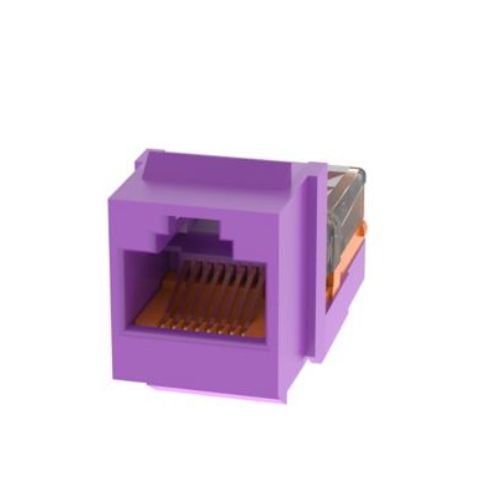

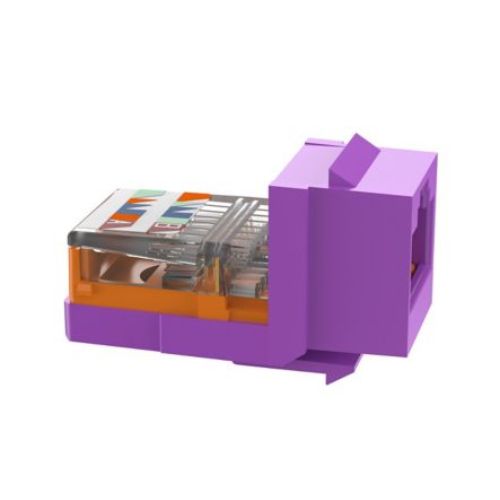

• The 8 Wire Lead Frame Keystone Unshielded Jack Module is designed for network installations requiring reliable connectivity for unshielded twisted pair (UTP) cables. It features an 8-wire lead frame design, which provides a stable and secure connection for networking applications.
• This module is suitable for use with various keystone faceplates and patch panels, offering compatibility and ease of installation. It is ideal for environments where shielding is not necessary, ensuring straightforward and efficient network connectivity.
• The NetKey® Cat 5e UTP RJ45 Leadframe Keystone Jack Module is designed for terminating 4-pair, 22-24 AWG twisted pair cables. Each module undergoes 100% factory testing for continuity to ensure reliable performance.
• The contacts are plated with 50 microinches of gold for enhanced performance and durability. This jack module is compatible with various keystone interfaces, including NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. It is finished in violet.
Also Known As:
8-Wire Lead Frame Keystone Jack, Unshielded Lead Frame Jack Module, UTP Keystone Jack Module, Lead Frame RJ45 Jack, Unshielded Network Jack, Keystone RJ45 Connector.
Specification:
| Product Type | Jack Module |
| Color | Violet |
| Body Material | ABS/Polycarbonate |
| Connector Type | Jack Module - Standard |
| Termination Style | Leadframe |
| Shield Type | Unshielded (UTP) |
| Depth | 1.37 In |
| Height | 0.87 In |
| Length | 1.37 In |
| Width | 0.65 In |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Part No. | NK5E88MVLY |
Features:
• Performance Assurance Each jack module is engineered to meet specified performance standards.
• Strain Relief and Cable Management The termination cap offers strain relief, helps control cable bend radius, and securely holds wires in place.
• Universal Keystone Compatibility Modules snap in and out of all NetKey® faceplates, modular patch panels, and surface mount boxes for quick installation, additions, and changes.
• Quality Control Marking Each module is marked with a quality control number for future traceability.
• Reduced Packaging Waste Designed to eliminate the need to open individual packages, thereby reducing on-site waste and making it ideal for high-volume installations.
