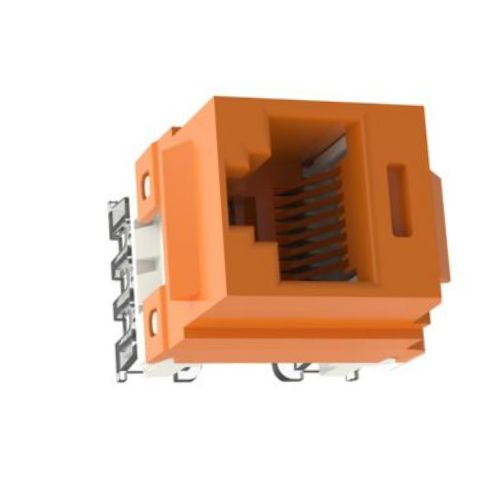

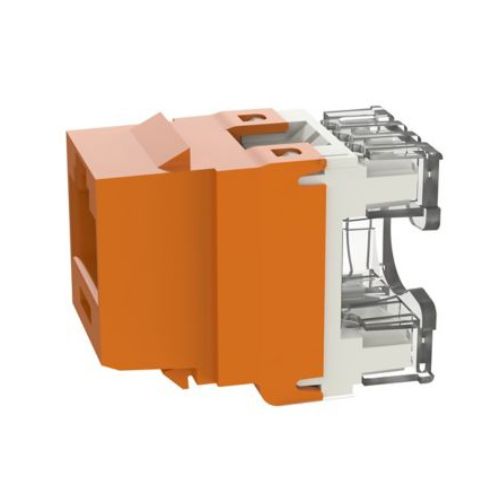

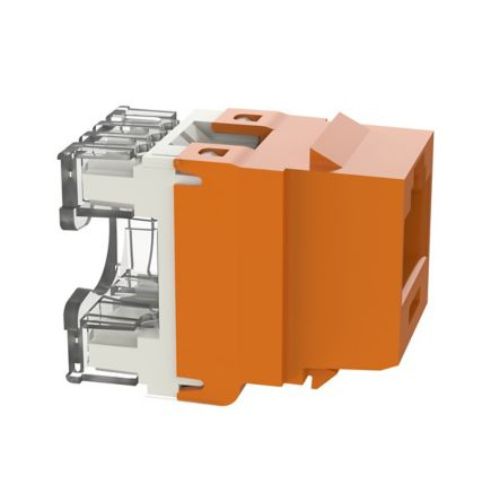

8 Position 8 Wire Punchdown Unshielded Keystone Jack Module Orange NK688MOR
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
• The 8 Position 8 Wire Punchdown Unshielded Keystone Jack Module is a versatile solution designed to efficiently terminate 4-pair, 24 to 22 AWG unshielded twisted pair (UTP) cables. Ideal for both voice and data applications, this module supports Category 6 and 5e performance requirements, ensuring reliable connectivity.
• The jack features 8 positions and 8 contacts, with color-coded terminals for T568A or T568B wiring schemes, simplifying installation. Compatible with standard keystone interfaces, including faceplates, surface mount boxes, and patch panels, this module is an essential component in any structured cabling system.
• The NetKey® Cat 6 UTP RJ45 Punchdown Keystone Jack Module is specifically designed to terminate 4-pair, 22-26 AWG twisted pair cables with precision. Each module undergoes 100% factory testing to ensure it exceeds industry standard performance requirements. The contacts are plated with 50 microinches of gold, providing enhanced conductivity and reliable performance.
• Each jack is individually serialized for quality assurance and is fully compatible with keystone interfaces, including NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is available in orange.
Also Known As:
RJ45 Keystone Jack, Ethernet Jack Module, UTP Punchdown Jack, 8P8C Keystone Connector, Network Cable Jack, Unshielded RJ45 Jack Module.
Specification:
| Product Type | Jack Module |
| Color | Orange |
| Body Material | Polycarbonate |
| Connector Type | Jack Module - Standard |
| Termination Style | Punchdown |
| Depth | 1.16 In |
| Height | 0.9 In |
| Length | 1.16 In |
| Width | 0.65 In |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Part No. | NK688MOR |
Features:
• Meets Category 6/Class E performance requirements.
• 8-position keystone jack module terminates unshielded twisted 4-pair, 22-26 AWG, 100 Ohm cable.
• Punchdown tool properly terminates each conductor for optimum performance.
• Universal label is color-coded for T568A and T568B wiring schemes.
• 8-position, 8-wire Keystone modules are color-coded for T568A and T568B wiring schemes.
• Terminates 4-pair, 24 to 22 AWG, 100 Ohm solid unshielded twisted pair cable.
• Compatible with NetKey® Faceplates, Surface Mount Boxes, and Modular Patch Panels.
