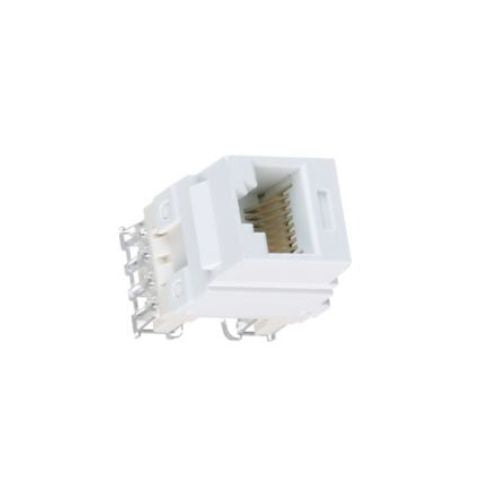

8 Position 8 Wire Punchdown Unshielded Jack Module White NK688MWH
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
• The 8 Position 8 Wire Punchdown Unshielded Jack Module is designed to terminate 4-pair, 22-26 AWG unshielded twisted pair (UTP) cables with precision and efficiency. This module supports both voice and data applications, making it a versatile choice for various network installations. The jack features 8 positions and 8 wires, with terminals color-coded for T568A and T568B wiring schemes, ensuring easy and accurate installation.
• Compatible with standard keystone interfaces, such as faceplates, surface mount boxes, and modular patch panels, this jack module is an essential component for structured cabling systems.
• The NetKey® Cat 6 UTP RJ45 Punchdown Keystone Jack Module is designed to reliably terminate 4-pair, 22-26 AWG twisted pair cables. Each module is rigorously factory tested to ensure it exceeds industry standard performance requirements.
• The contacts are plated with 50 microinches of gold, providing superior conductivity and durability. Each jack is individually serialized for quality assurance and is compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is available in white.
Also Known As:
RJ45 Punchdown Jack, Ethernet Jack Module, UTP Keystone Jack, 8P8C Punchdown Connector, Network Cable Jack, Unshielded RJ45 Jack Module.
Specification:
| Product Type | Jack Module |
| Color | White |
| Body Material | Polycarbonate |
| Connector Type | Jack Module - Standard |
| Termination Style | Punchdown |
| Depth | 1.16 In |
| Height | 0.9 In |
| Length | 1.16 In |
| Width | 0.65 In |
| Standards Met | Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz. Meets with ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and CAN/CSA-C22.2 (UL File E129886), and RoHS Compliant |
| Part No. | NK688MWH |
Features:
• 100% performance tested to ensure reliability.
• Utilizes 110 style punchdown termination for secure connections.
• Universal keystone jack modules snap in and out of all faceplates, modular patch panels, and surface mount boxes, allowing for quick moves, adds, and changes.
• Individually serialized with a quality control number for traceability.
• Bulk packaging eliminates the need to open individual packages, reducing on-site waste and making it ideal for high-volume installations.
• Contacts are plated with 50 microinches of gold for superior performance and durability.
• Compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes.
• Designed to terminate 4-pair, 22-26 AWG twisted pair cables.
