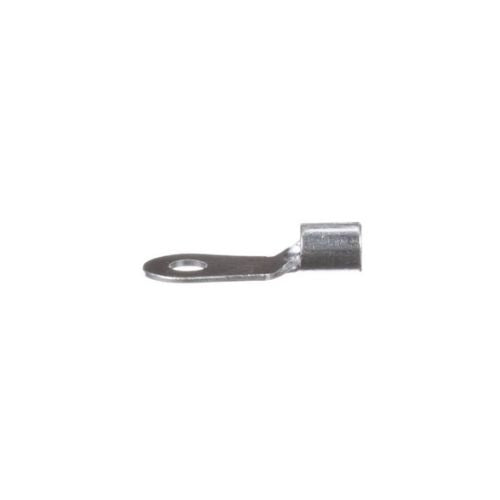

8 AWG Non Insulated Tin Plated Copper Ring Terminal P8-10R-T (Pack of 200)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
• The 8 AWG Non-Insulated Tin Plated Copper Ring Terminal is a high-quality electrical connector designed to provide a secure and reliable connection for 8 AWG wire sizes.
• Made from tin-plated copper, it offers excellent conductivity and corrosion resistance, ensuring long-lasting performance in a variety of industrial, automotive, and electrical applications.
• The non-insulated design allows for a compact and easy-to-use solution, ideal for use in environments where insulation is not required. This ring terminal is perfect for providing a stable, strong electrical connection in harsh conditions.
Also Known As:
8 AWG Ring Terminal, Non-Insulated Copper Ring Connector, Tin Plated Copper Ring Terminal, 8 AWG Copper Crimp Terminal, Non-Insulated Copper Electrical Terminal, 8 AWG Ring Connector.
Specification:
| Product Type | Ring Terminal |
| Finish/Coating | Tin-Plated |
| Base Material | Copper |
| Insulation Material | Non-Insulated |
| Length | 1.14 In |
| Width | 0.47 In |
| Thickness | 0.04 In |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Part No. | P8-10R-T |
Features:
• Ring tongue design assures a secure connection in high-vibration applications.
• Internal barrel serrations provide good wire contact and maximize tensile strength.
• Brazed seam protects the terminal barrel from splitting during the crimp process.
• Internally beveled barrel ensures quick and easy wire insertion.
