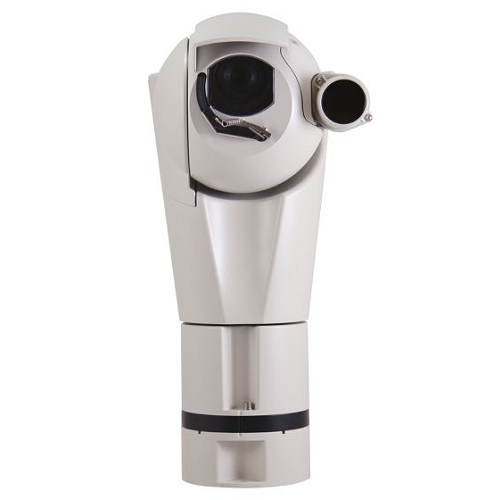

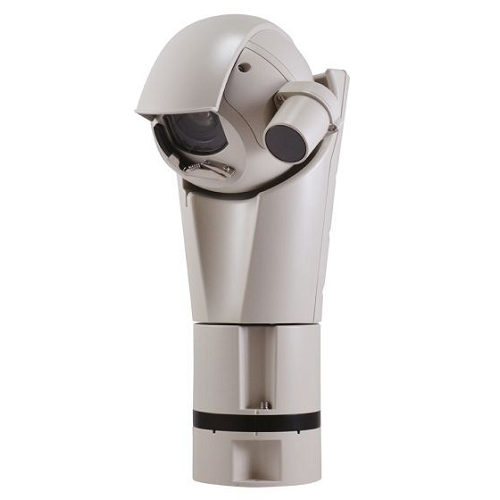

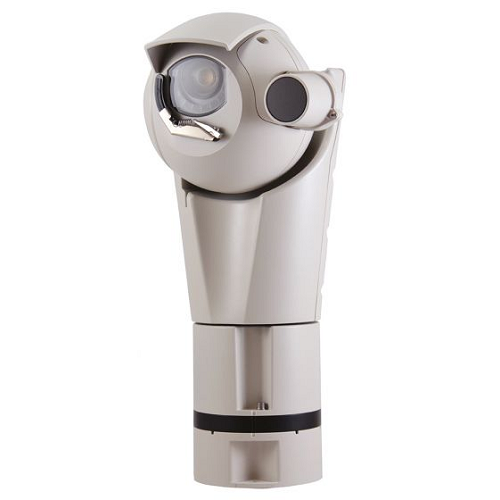

640x512 Dual Sensor Thermal PTZ Network Camera UED22NA000A

Product Information

Specification

ULISSE EVO DUAL PTZ, Day/Night camera SONY FCB-EV7520, FullHD, zoom 30x, 1/2.8", H264/AVC, thermal camera 24.4mm (18° HFOV), 640x512, 7.5Hz, 24Vac/dc - PoE 90W, wiper. The EVO DUAL PTZ (UED) is a sophisticated network positioning system designed to provide dual independent video feeds from a high-sensitivity visual camera and a thermal camera, which are perfectly synchronized with the PTZ (pan-tilt-zoom) movements. ULISSE EVO DUAL (UED) offers an exceptional solution for continuous, day/night outdoor surveillance, making it ideal for protecting perimeters, borders, critical infrastructures, traffic, railways, and more. By integrating two cameras into one system, it becomes a highly effective surveillance tool. The visible camera specializes in target recognition and identification, while the thermal camera enhances detection accuracy, even in total darkness or extreme weather conditions. The thermal sensor, utilizing non-cooled long-wave infrared (LWIR) technology with vanadium oxide (VOx), ensures superior detection accuracy. It is available in 320x256 or 640x512 resolution, with a range of optical options to tailor to specific needs. The visible camera features the SONY FCB-EV7520 model with 30x optical zoom and a 1/2.8" Exmor R CMOS sensor, delivering Full HD 1080/60p resolution. This ensures high-quality imagery, even when capturing moving objects or in difficult lighting situations. It includes image stabilization and dynamic privacy masking, along with advanced SONY technology, such as configurable Wide Dynamic Range (WDR) and High Light Compensation, enabling effective management of strong light contrasts. This combination of features makes the EVO DUAL PTZ a powerful and versatile solution for the most demanding surveillance requirements.

Features:

• Easy to install
• Maximum detection accuracy
• PoE compatible with standard IEEE.802.3bt
• Designed to endure outdoor applications
• Unbeatable solution for video surveillance of perimeters and critical areas
• ULISSE EVO DUAL PTZ, Day/Night camera SONY FCB-EV7520, FullHD, zoom 30x, 1/2.8", H264/AVC, thermal camera 24.4mm (18° HFOV), 640x512, 7.5Hz, 24Vac/dc - PoE 90W, wiper

Specifications:

• Product Type: Network PTZ Camera
• Resolution: 640x512
• Part Number : UED22NA000A
