640 X 512 Network Outdoor PTZ Thermal Camera with 35mm Lens UET2DA000AH

Product Information

Specification

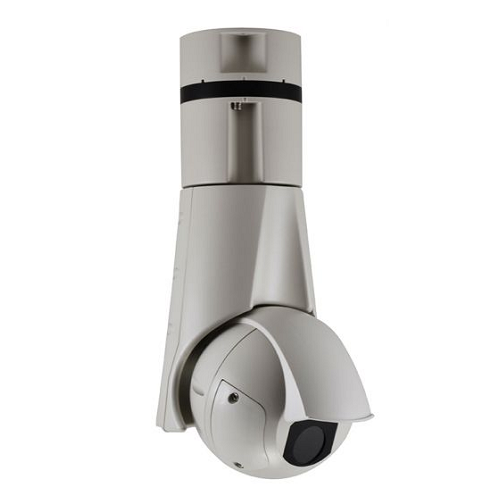

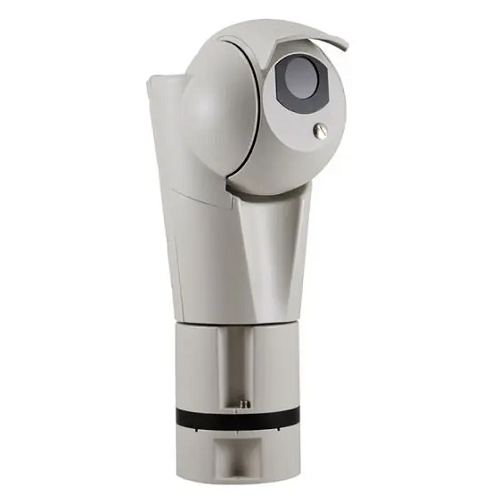

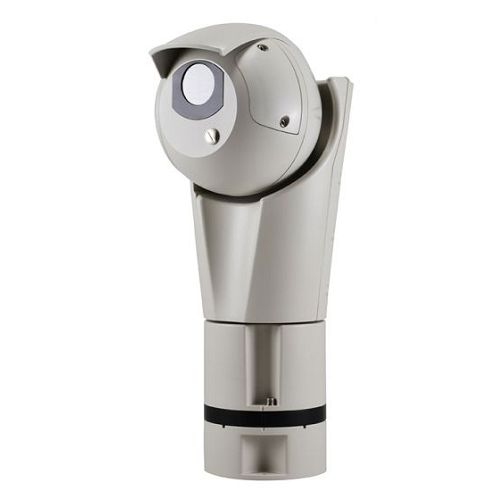

ULISSE EVO THERMAL PTZ thermal camera with radiometric functions, 35mm, 640x512, 30Hz, 24Vac/dc - PoE 90W. The ULISSE EVO THERMAL is a high-strength, lightweight thermal imaging system engineered for the most demanding outdoor conditions, ensuring reliable, uninterrupted operation. Its streamlined, modern design enables quick, hassle-free assembly, leading to reduced installation expenses and minimal maintenance requirements. The unit boasts remarkable resilience against corrosion and extreme temperatures, withstanding a wide range from -40°C to +65°C. Its sturdy build is further reinforced by certifications including IK10, IP66/IP67/IP68, NEMA TYPE 4X, and TYPE 6P, offering strong impact resistance and protection from water, dust, and harsh environmental elements. Additionally, the system’s exceptional wind tolerance, up to 230 km/h with smooth PTZ (pan-tilt-zoom) movement, allows for peak performance even in high-wind scenarios. Certified with Lloyd's Register Marine Type Approval for maritime applications and compliant with railway standards, the ULISSE EVO THERMAL is suitable for diverse, high-stakes environments. Its design allows for versatile mounting options, including upside-down installation in line with typical speed dome placements. Optional quick-fit connectors support Ethernet/PoE, power supply, and I/O, facilitating quick and easy replacement when needed. The device can operate on PoE 90W (according to IEEE.802.3bt standard), ensuring compatibility with popular power injectors and backward compatibility with PoH injectors (such as OHEP90INJ or OHEP90INJO). This makes the ULISSE EVO THERMAL a versatile, dependable solution for continuous surveillance in challenging outdoor environments.

Features:

• Designed to resist and last
• Thermal camera with radiometric functions
• Unbeatable solution for outdoor applications
• PoE compatible with standard IEEE.802.3bt
• ULISSE EVO THERMAL PTZ thermal camera with radiometric functions, 35mm, 640x512, 30Hz, 24Vac/dc - PoE 90W

Specifications:

• Product Type: PTZ Thermal Camera
• Resolution: 640 X 512
• Lens Size: 35mm
• Part Number : UET2DA000AH
