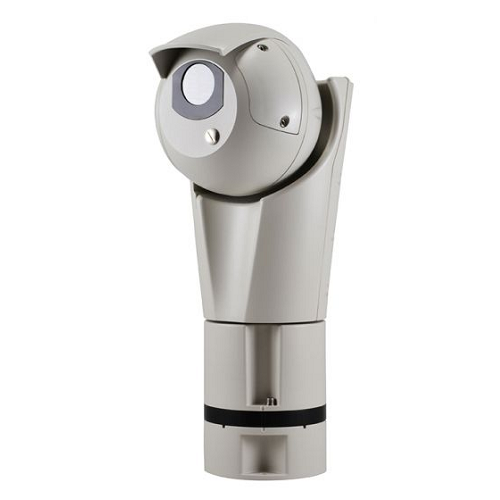

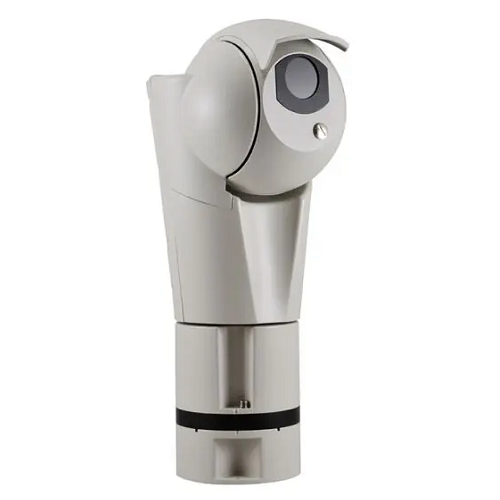

640 X 512 Network Outdoor PTZ Thermal Camera with 25mm Lens UET2EA000A

Product Information

Specification

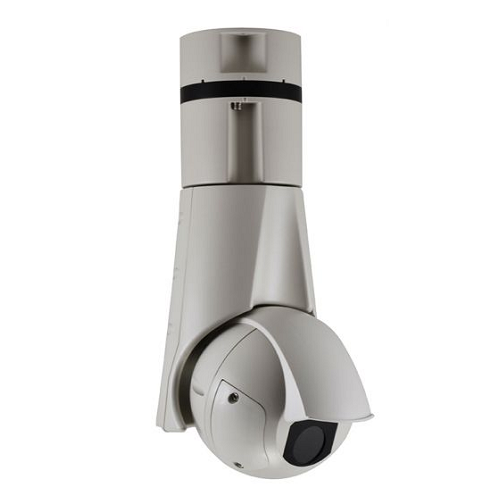

ULISSE EVO THERMAL PTZ thermal camera with radiometric functions, 25mm, 640x512, 7.5Hz, 24Vac/dc - PoE 90W. The ULISSE EVO THERMAL is a high-performance thermal imaging solution designed to meet the demands of rigorous outdoor environments. Its streamlined, lightweight design offers exceptional strength and reliability, reducing installation time, costs, and maintenance to a minimum. Built for endurance, it is resistant to corrosion and capable of operating within an extensive temperature range from -40°C to +65°C. The durable construction meets IK10, IP66/IP67/IP68, NEMA TYPE 4X, and TYPE 6P protection standards, providing top-tier impact resistance and environmental protection. It is engineered to perform in extreme conditions, withstanding winds up to 230 km/h while maintaining seamless PTZ functionality at maximum speed. Certified by Lloyd's Register Marine Type Approval for maritime use and compliant with railway standards, the ULISSE EVO THERMAL is versatile across applications. It can be mounted in various orientations, including upside down, similar to traditional speed domes. Equipped with quick-fit connectors for Ethernet/PoE, power supply, and I/O, it allows rapid unit replacement for on-site maintenance. The system operates on PoE 90W per IEEE.802.3bt standard, compatible with most market power injectors and backward-compatible with PoH injectors (such as OHEP90INJ or OHEP90INJO). This makes the ULISSE EVO THERMAL an ideal, adaptable solution for continuous surveillance in demanding outdoor settings.

Features:

• Designed to resist and last
• Thermal camera with radiometric functions
• Unbeatable solution for outdoor applications
• PoE compatible with standard IEEE.802.3bt
• ULISSE EVO THERMAL PTZ thermal camera with radiometric functions, 25mm, 640x512, 7.5Hz, 24Vac/dc - PoE 90W,

Specifications:

• Product Type: PTZ Thermal Camera
• Resolution: 640 X 512
• Lens Size: 25mm
• Part Number : UET2EA000A
