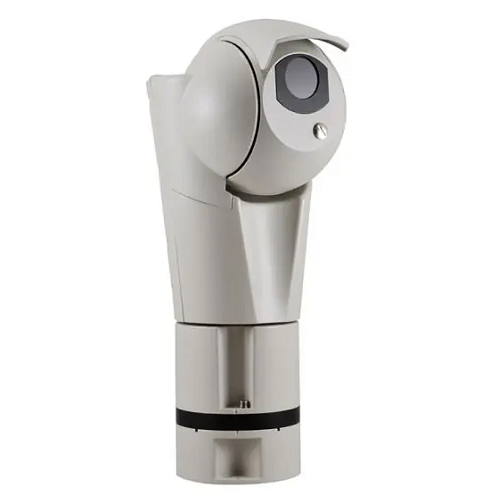

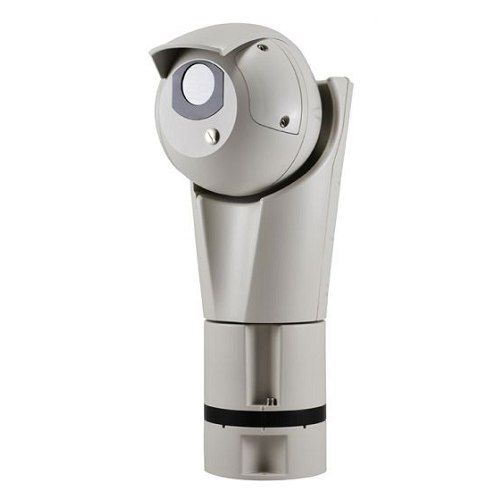

640 X 512 Network Outdoor PTZ Thermal Camera with 13mm Lens UET2GA000A

Product Information

Specification

ULISSE EVO THERMAL PTZ thermal camera with radiometric functions, 13mm, 640x512, 7.5Hz, 24Vac/dc - PoE 90W. The ULISSE EVO THERMAL is a high-performance thermal imaging solution, combining a sleek, linear design with exceptional durability and reliability in demanding outdoor conditions. Its lightweight build enables fast and easy installation, minimizing both setup time and costs while requiring no maintenance. Designed to ensure continuous operation in extreme environments, it features strong corrosion resistance and functions efficiently across temperatures ranging from -40°C to +65°C. Its robust structure meets stringent protection standards, including IK10, IP66/IP67/IP68, NEMA TYPE 4X, and TYPE 6P, providing full defense against impact, water, and dust. It also withstands wind speeds up to 230 km/h, maintaining PTZ movement at optimal speed. Certified by Lloyd's Register Marine Type Approval for maritime use and meeting railway standards, ULISSE EVO THERMAL offers broad application flexibility. The device can be mounted in various positions, including upside-down like traditional speed domes, and is equipped with quick-fit connectors for Ethernet/PoE, power supply, and I/O, enabling fast and easy unit replacement on-site. It is powered by PoE 90W in line with the IEEE.802.3bt standard, compatible with standard power injectors and backward compatible with PoH injectors (e.g., OHEP90INJ or OHEP90INJO). This combination of features makes ULISSE EVO THERMAL an ideal solution for continuous, reliable surveillance in the most challenging environments.

Features:

• Designed to resist and last
• Thermal camera with radiometric functions
• Unbeatable solution for outdoor applications
• PoE compatible with standard IEEE.802.3bt
• ULISSE EVO THERMAL PTZ thermal camera with radiometric functions, 13mm, 640x512, 7.5Hz, 24Vac/dc - PoE 90W

Specifications:

• Product Type: PTZ Thermal Camera
• Resolution: 640 X 512
• Lens Size: 13mm
• Part Number : UET2GA000A
