| Type | COAX Stripper |
|---|---|
| UPC | 811490019652 |
| Cable Type | COAX |
| Cable Size | RG59 and RG6 |
| Strip Length | Braid: 0.236" (6 mm), Center Conductor: 0.394" (10 mm) |
| Dimensions | 4.26 in x 1.19 in x 1.69 in |
| Part Number | CSS-5610 |

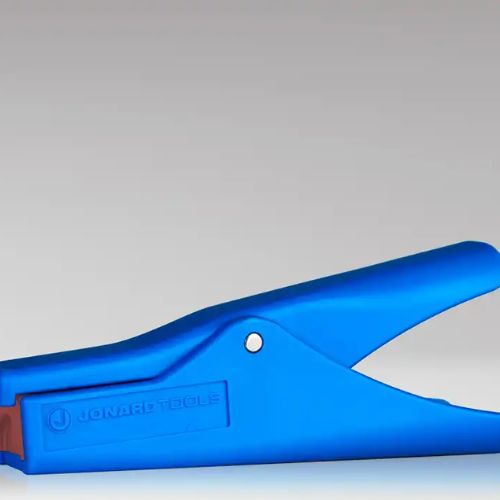

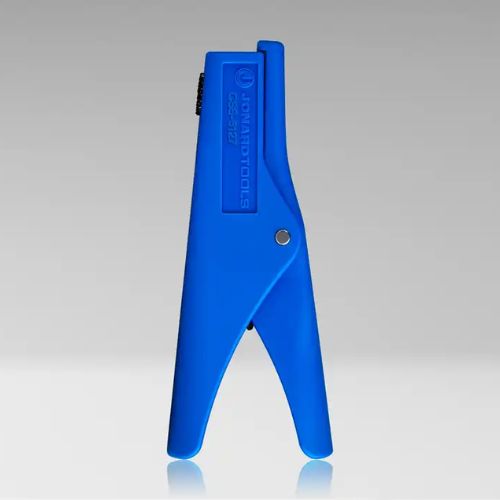

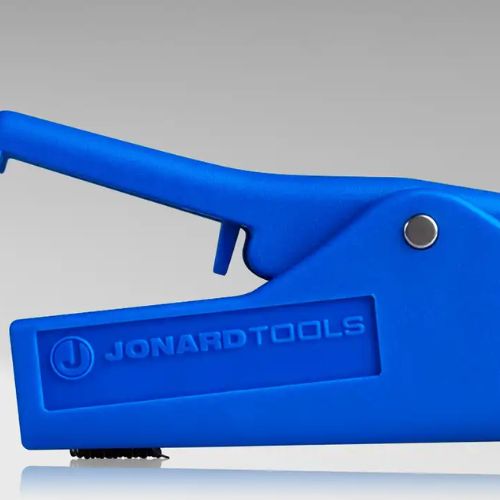

6 mm and 10 mm COAX Cable Stub End Stripper
Description:
The CSS-5610 coaxial cable stripper is designed to strip the stub end of a coaxial cable in wall outlets, exposing 6 mm of braid and 10 mm of center conductor, eliminating the need to install new cable.
Features:
⦿ Easy to use: Insert the cable, rotate like a screwdriver, and remove to strip
⦿ Protects cable: Will not cut or damage the braid or score the center conductor
⦿ Durable blades: High-carbon steel blades last for over 5,000 strips per side
⦿ Braid management: Hook-and-loop strip on the tool folds back cable braid after stripping
⦿ Versatile compatibility: Works with CSS blade cartridges 105/110/115/120/130/135
⦿ Replacement cartridge: CSS-125
Blade Replacement Instructions:
⦿ Remove blade cartridge: Open the jaws and push upward on the front of the cartridge. It will lift out.
⦿ Install new cartridge: Insert the cartridge into the tool, close the jaws, and squeeze to ensure the blade locks securely in place.
