6 Fiber OS2 Singlemode Tight Buffer OFNP Single Unit Distribution Fiber Cable 44006K1BB 1000 ft

Product Information

Specification

About :

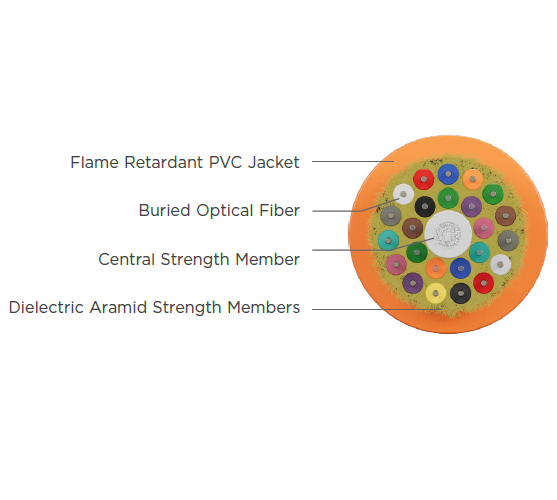

TeraFlex Bend Resistant G.657.A1 Singlemode Optical Fiber. These premises distribution optical fiber cables are constructed using a single unit, single jacket RoHS-compliant design with fiber counts from 6 through 24. The design consists of flexible 900 μm tight buffered industry standard 250 μm fibers (900/250/125 μm) and is suitable for use with standard connectors, like the SC, ST, and FC, and small-form-factor connectors like the LC. Dielectric aramid yarns are applied for strength while maintaining flexibility. A durable, flame resistant outer jacket is applied over the cable core using appropriate OFNR or OFNP rated materials.

Also Known as :

6 Fiber Cable, Singlemode OFNP Cable, Premises Cable, Flame Retardant Cable, PVC Jacket Cable, TeraGain Cable, Low Smoke PVC Cable, Plenum Cable.

Performance Compliance:

• UL 1651
• CSA C22.2 No. 232
• UL 1666
• NFPA 262
• Telcordia GR-409, Issue 1
• Telcordia GR-409, Issue 2
• ANSI/ICEA S-83-596
• ANSI/TIA-568.3-D

Sustainability:

• UL Certified EPD
• HPD
• USGBC Member
• RoHS-compliant/RoHS 2-compliant
• REACH-compliant

Applications:

• Intrabuilding backbones
• Conduit pathways
• Service entrance to communication closets
• “Behind-the-shelf” connections

Benefits:

• Contributes toward 1 LEED point under the Material and Resources credit (MRc)
• Meets commercial, government and international requirements for length markings
• Adjustable tension control on reel prevents over spin and entangling of cable

Features:

• UL Certified Environmental Product Declaration (EPD)
• Health Product Declaration (HPD)
• BrakeBox payout control system

Specifications:

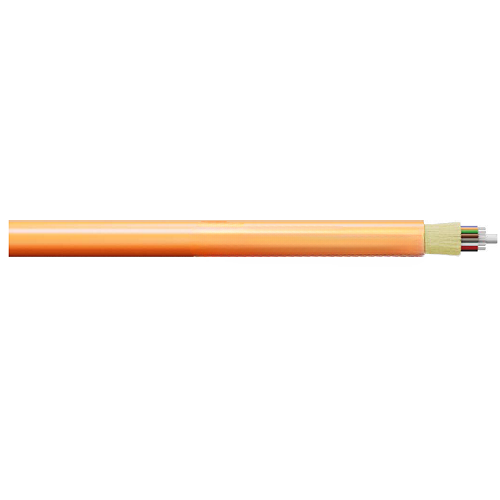

*Image is an illustration purpose only, may not reflect the exact color sold.
