6 Fiber OS2 Singlemode Riser Dry Block Indoor/Outdoor Tight Buffer Fiber Cable Black F308-006U13-E991

Product Information

Specification

About:

The Dry Block, Sunlight Resistant Indoor/Outdoor, Tight Buffer Riser-Rated Cable line offers the system designer the ultimate in premises optical fiber cable utility. These cables can be installed in open spaces, trays, conduits, inner-ducts, trenches, steam tunnels and building riser locations. These cables incorporate the latest in dry water-blocking technology. All fiber types are available, including 50/125 μm, 62.5/125 μm and single mode.

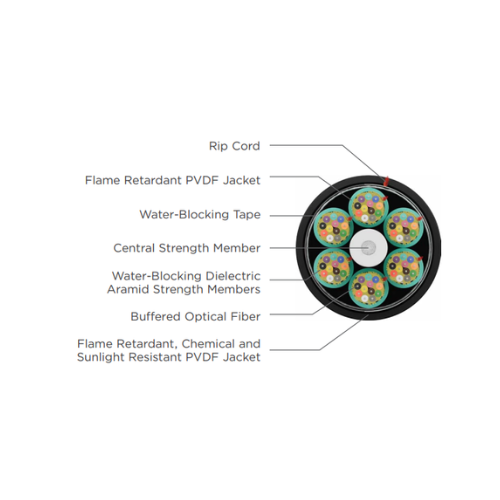

2 – 24 Fiber Single Unit: Flexible tight buffer material extruded over fiber to 900 μm diameter; color coded fibers are combined with dielectric aramid yarns for strength
and water blocking

Also Known as:

6 Fiber SM Cable, Singlemode Fiber Cable, Indoor/Outdoor Cable, Bend Resistant G.657.A1, Singlemode Indoor Cable, OS2 Riser Cable, Non-Plenum Cable, Premises Cable Riser.

Benefits:

• Future-proof fiber performance for current and future multigigabit applications
• Cable integrity maintained even if damage occurs to protective layers
• Attaches directly to mechanical connectors
• Eliminates the need to purchase separate cables for OSP and indoor/riser applications
• Adjustable tension control on reel prevents over spin and entangling of cable

Features:

• Exceeds ANSI/TIA-568.3-D optical performance
• Dry-block design meets ICEA 696 water-block requirements
• 900 μm tight-buffered fibers
• All dielectric, Jacket rip cord, BrakeBox payout control system

Applications:

• Intra/inter-building backbones
• Trench/conduit/duct/tray pathways
• Dry or wet locations

Specifications:
