6 Fiber Dri Lite Zero Leak Loose Tube Single Jacket Dielectric Cable 110062D01

Product Information

Specification

About :

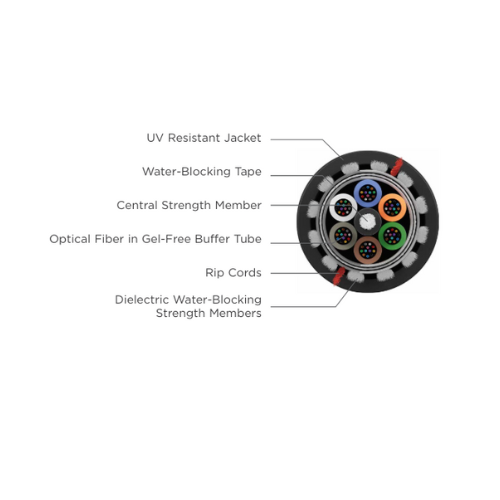

Zero Water Peak, loose tube cables are the product of choice as the backbone in Outside Plant (OSP) environments. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL).
The core is wrapped with flexible strength members covered with a water-blocking tape, then encased with a black jacket. A rip cord is included under the jacket for ease of entry

Also Known as :

6 Fiber Dri-Lite Cable, Outside Plant Cable, Loose Tube Cable, Single Jacket Cable.

Specifications :

Standards Compliance:

• Telcordia GR-20-CORE
• RDUP PE-90 Designation MLT
• ICEA S-87-640-2011
• RoHS-compliant

Applications:

• Underground duct and lashed aerial
• Trunk, distribution and feeder cable
• Local loop, metro, long-haul and broadband network

Benefits:

• High fiber density
• Multiple network applications
• Metallic option offers ease of location, dielectric design eliminates grounding issues
• Speeds fiber access and cleanup
