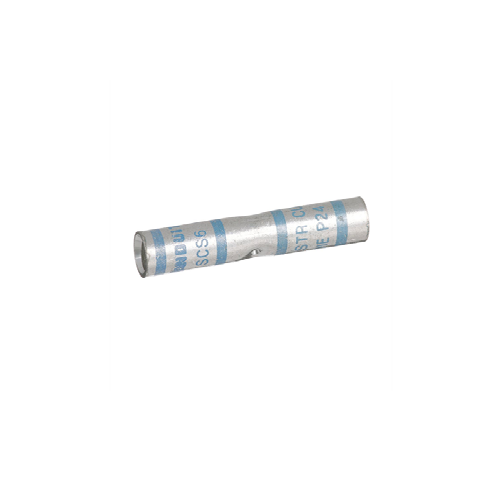

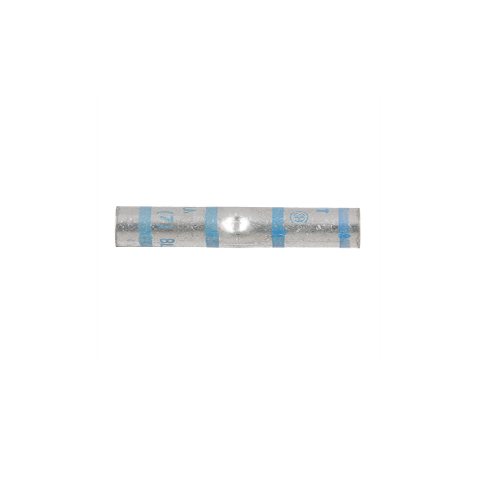

6 AWG Standard Copper Blue Compression Pan-Lug Butt Splice SCS6-L (Pack Of 50)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Compression Splice |
| Sub Brand | Pan-Lug |
| Copper Code Conductor Size | 6 AWG |
| Barrel Type | Standard |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Standards Met | UL-listed and CSA certified for use up to 600V & Temperature Rated to 90°C |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Burndy Die Index Number | 7 |
| Panduit Die Index Number | P24 |
| Overall Length (In.) | 1.75 |
| Overall Length (mm) | 44.45 |
| Wire Strip Length (In.) | 13/16 |
| Wire Strip Length (mm) | 20.6 |
| UL Temperature Rating (°C) | 90 |
Description
The Compression 6 AWG Compression Splice Pan-Lug Standard Copper Blue SCS6-L is a premium electrical component designed for creating secure and durable connections between 6 AWG copper conductors. Engineered with precision and reliability in mind, this splice ensures optimal electrical performance in a wide range of applications. The compression design guarantees a tight and long-lasting connection, minimizing resistance and maximizing conductivity.
Features
• Color coded barrel, internal wire stops, tin-plated to inhibit corrosion,NEBS Level 3
• Material: Crafted from high-quality copper for superior conductivity and longevity.
• Compression Design: Utilizes compression technology for a strong and reliable connection.
• Color-Coded: Blue color for easy identification and installation.
• 6 AWG Compatibility: Specifically designed to accommodate 6 AWG copper conductors.
• Standard Size: Conforms to industry standards for seamless integration into electrical systems.
• Versatile: Suitable for a wide range of electrical applications, including residential, commercial, and industrial settings.
• Simple Installation: Streamlined installation process for convenience and efficiency.
• Durable Construction: Built to withstand environmental factors and provide consistent performance over time.
Applications
• Residential electrical wiring
• Commercial electrical systems
• Industrial machinery and equipment
• Electrical panels and distribution systems
• Renewable energy installations
• Ensures secure and reliable electrical connections
• Reduces resistance and power loss for efficient conductivity
• Resistant to corrosion and environmental conditions
• Facilitates easy installation
• Provides long-lasting performance for peace of mind.
