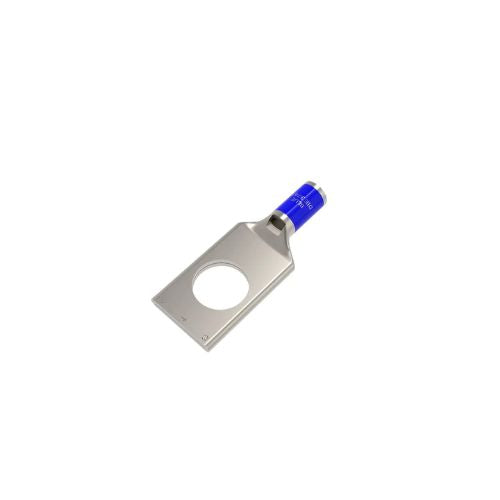

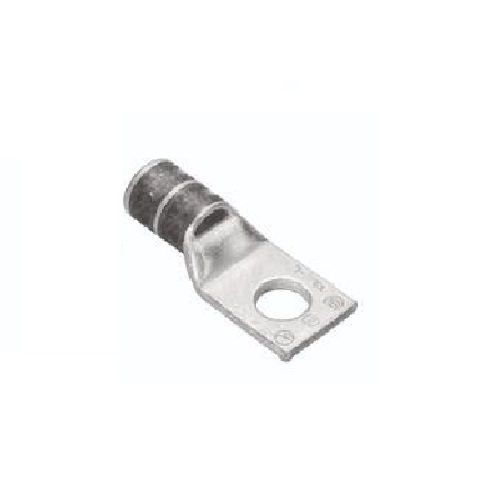

6 AWG 5/16" Stud 1 Hole Short Standard Barrel Compression Terminal Copper Lug YA6CL3BOX

Product Information

Specification

6 AWG 5/16" Stud 1 Hole Short Standard Barrel Compression Terminal Copper Lug

Description

HYLUG(tm terminals, types YA, YA-TC, YA-L, YA-L-TC, YA-2N, YA-2TC, YA-LTC-FX, YA-L-2TC, and YA-2LN are designed for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. 6 AWG CU, One Hole, 5/16 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90° Up to 35kV, BLUE Color Code, 7 or 374 Die Index.

Features

• Barrel is designed with an internal chamfer at the wire entry for smooth insertion of wire, preventing possible damage to the strands.
• Standard barrel length is recommended for installations with limited space availability.
• Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements.
• Connectors are clearly marked with stamping and barrel color coding.
• Seamless high conductivity electrolytic copper tubing with heavy-duty wall thickness to provide maximum conductivity, low resistance, and ductility for an excellent combination of electrical and crimp forming properties.
• Barrel diameter closely matches commercial (code) cable and Navy cable diameters to provide an excellent relationship of the conductor/connector combination to produce a high-quality electrical connection with the recommended tooling.
• Electro-tin plated and electro-lead plated to provide durable, long-lasting corrosion resistance.
• Internally beveled barrel end to provide easy cable insertion.
• Each connector is clearly marked with the wire size and type, die index, and color coding to provide easy identification and proper tooling recommendation.
• Marked with the proper number and location of crimps to lower installed costs and provide for appropriate installations.
• Proper compression systems form a homogeneous mass and result in an excellent electrical connection.
• Use up to 35 kV as indicated (Suitable for high voltage applications).
• Crimp areas clearly marked to provide the correct number and location of crimps for proper installation.
• Hydraulic and Battery tooling crimp embossment to provide permanent die index number embossment on completed crimp for inspection purposes.
