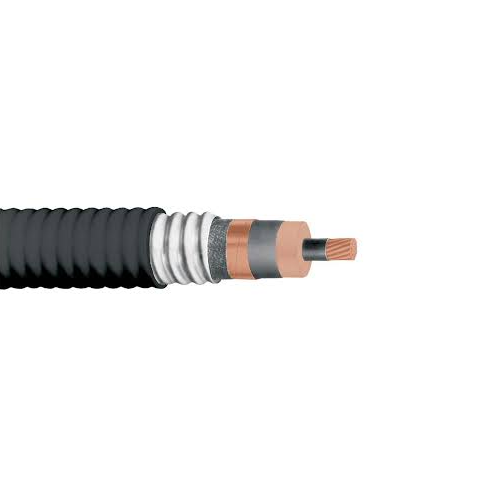

571-23-0405 1 AWG 1C Bare Copper Shielded Tape Corrugated Aluminum PVC 30KV C-L-X Okoguard Power Cable

571-23-0405 1 AWG 1C Bare Copper Shielded Tape Corrugated Aluminum PVC 30KV C-L-X Okoguard Power Cable

Allowable Ampacity for 571-23-0405 1 AWG 1C Bare Copper Shielded Tape Corrugated Aluminum PVC 30KV C-L-X Okoguard Power Cable:100 Amps

About:

The cable is engineered for medium to high voltage transmission in a variety of power networks. The Okoguard insulation system provides excellent dielectric strength and reliability over a wide range of temperatures and conditions.

Also Known As:

This cable may be referred to as 1 AWG single conductor Okoguard power cable, or corrugated aluminum armored power cable.

Application:

• Industrial plant distributions
• Substations
• Other electrical systems where high voltage and shielding are necessary

Standards:

• IEEE standards for shielded power cables
• UL Listed or equivalent certifications for safety and performance at 30KV
• NEC (National Electrical Code) requirements for installation and performance

Construction:

• Conductor: Annealed uncoated copper compact stranded per IEC 60228.
• Strand Screen: Extruded semiconducting EPR strand screen. Meets or exceeds the electrical and physical properties of IEC 60502-2
• Insulation: Meets or exceeds the electrical and physical properties of IEC 60502-2.
• Insulation Screen: Extruded semiconducting EPR insulation screen applied directly over the insulation. Meets or exceeds the electrical and physical properties of IEC 60502 2.
• Shield: 0.005 inches (0.127mm) bare copper tape helically applied with 10% minimum overlap, followed by a semiconducting tape.
• Sheath: Close fitting, impervious, continuous, corrugated aluminum C-L-X per UL 1072. C-L-X is recognized as a grounding conductor by the U.S. National Electrical Code (NEC).
• Jacket: Meets or exceeds the electrical and physical properties of IEC 60502-2.

Features:

• Testing to IEC 60502-2 conducted by KEMA Nederland B.V.
• Conformance provided by means of Report of Performance TIC 1373-14.
• Passes optional flame spread requirements per IEC 60332-1-2.
• PVC jacket passes oil immersion requirements per IEC 60811-404.
• Passes IEC 60332-3-23 Category B vertical tray flame test.
• Triple tandem extruded, all EPR system.
• Okoguard cables meet or exceed all recognized industry standards.
• Excellent corona resistance.
• Screens are free stripping.
• Exceptional resistance to “treeing”.
• Exceptional resistance to moisture.
• Resistant to most oils, acids, and alkalies.
• Sunlight resistant.
• Aluminum and coated copper conductors available.
• Continuous sheath provides grounding safety.
• Complete prepackaged, factory tested wiring system.

Specifications:

• Conductor Size mm²: 50
• Nominal Insulation Thickness (Inches): 0.315
• Approx. Dia. Over Insulation (Inches): 1.009
• Approx. Dia. Over Screen (Inches):  1.069
• Approx. Core O.D (Inches): 1.120
• C-L-X O.D (Inches): 1.374
• Jacket Thickness (Inches): 0.087
• Approx. O.D (Inches): 1.567
• Approx. Net Weight: 1267
• Part Number: 571-23-0405
