-50 to +26dBm Fiber Mini Optical Power Meter FPM-50S

Product Information

Specification

Description

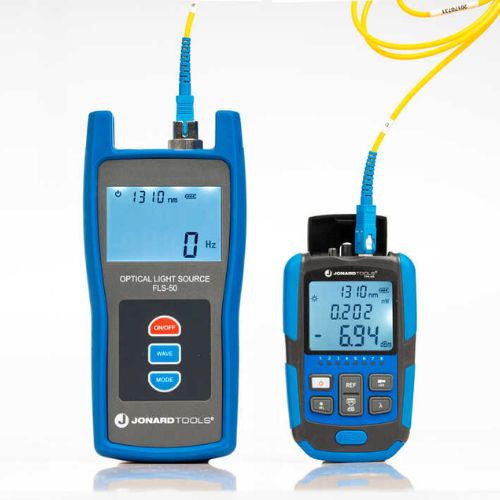

The Mini Optical Power Meter is perfect for measuring both the absolute optical power and relative power loss in fiber optic cables. It also features a built-in visual fault locator, network cable tester, and remote.

Features

• Measures a wide variety of wavelengths from 800-1650 nm with a mere 0.01 dB resolution.
• Measures 10 preset calibrated wavelengths with high precision to determine absolute or relative power.

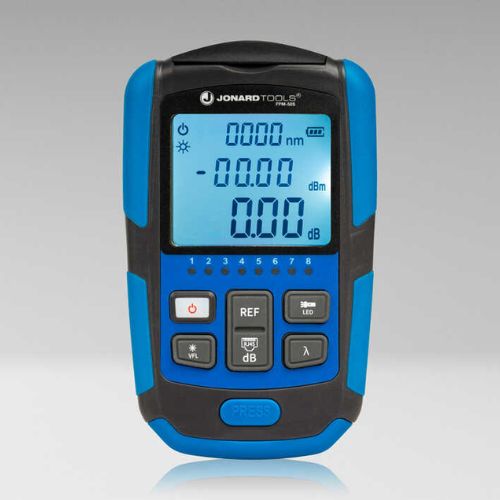

• LED screen is backlit for viewing in low-light locations, and a 10-minute auto-off helps preserve battery life.

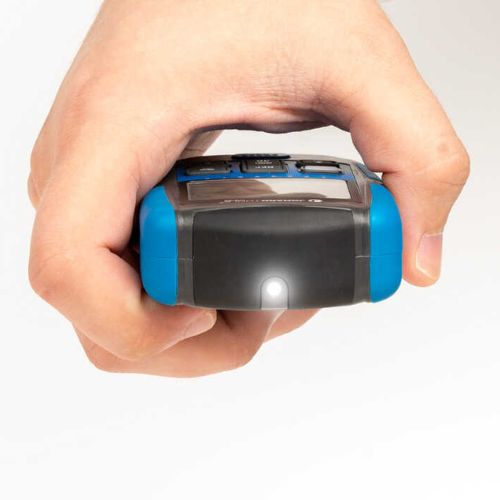

• Built-in 2 mW visual fault locator (VFL) identifies faults in fiber cable in a pinch.

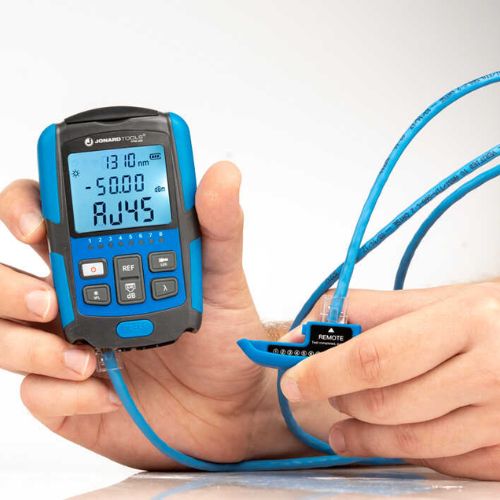

• Tests RJ45 connectorized network cables using built-in remote.

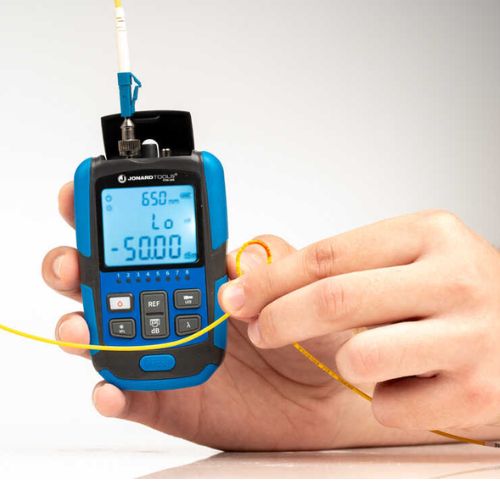

• Comes with FC and LC adapters so that fiber connectors can be directly connected to the tool.
• The FC/SC adapters are for APC/PC/UPC connectors.

This product includes:

• Mini Optical Power Meter
• Instruction Manual
• (2) AAA Batteries (required for operation)
• FC Adapter
• LC Adapter

Specifications

Type: Power Meter
Connector Types: FC (APC/PC/UPC) & LC (PC/UPC)
Detector Type: InGaAs
Calibrated Wave lengths (nm): 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650 nm, ≤ ± 0.2 dB
Measurement Range: -50 dBm to +26 dBm
Single Mode Range: 980, 1270, 1310, 1490, 1550, 1577, 1625, 1650 nm
Multi Mode Range: 850, 1300 nm
XGSPON Range: 1270, 1577 nm
Resolution: 0.01 dB
Operating Time: ≥ 120 hours
Battery Type: (2) AAA batteries
Dimensions: 4.36 in x 2.66 in x 1.09 in (11.06 cm x 6.76 cm x 2.76 cm)
UPC: 810053359785
Part Number: FPM-50S
