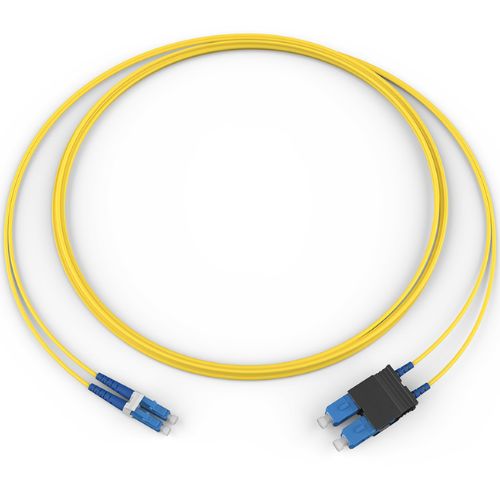

5 Meters Fiber Optic Jumper Standard LCUPC Duplex SM Ultra 2F Zipcord Riser Standard Yellow Jacket 047202G5116005M

Product Information

Specification

About :

Two-fiber cable assemblies are offered with a variety of connector and cable combinations. Connector options include LC, SC, FC, ST compatible, and MT-RJ. RoHS compliant Zipcord, DFX, MIC, Fan-out, and RIC cables are available. Additional detailed furcation images are available in the Cable Assembly Family Specification Sheet.

Specifications :

Product Number : 047202G5116005M
EAN Code : 4056418604589
Flame Rating : Riser (OFNR)
Fiber Category : Bend-insensitive SM (OS2)
Cable Assembly Type : Two Fiber
Application : General Building Applications,  Vertical Riser
Cable Type : Tight-Buffered
RoHS : Free of hazardous substances according to RoHS 2011/65/EU
Fiber Count : 2
Outer Jacket Color : Yellow
Fiber Code : G
Fiber Type : Single-Mode Ultra-Bendable Fiber
Fiber Compliance : ITU-T G.652.D and ITU-T G.657.A1
Fiber Core Diameter : 8.2 µm
Maximum Attenuation : 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Serial 1 Gigabit Ethernet : 5000 MHz*km / - / -
Serial 10 Gigabit Ethernet : 10000 MHz*km / - / 40000 MHz*km
Wavelengths : 1310 nm / 1383 nm / 1550 nm
Fiber Category : OS2
Reflectance, Typical : ≤ -58 dB
Polish : UPC
Insertion Loss, Typical : 0.15 dB
Boot Color : Blue
Connector Type : LC Duplex
Ferrule Material : Ceramic
Housing Color : Blue
Housing Material : Composite

Features :

• Rugged and durable

• Every termination is tested to ensure the highest in network performance

• Corning proprietary manufacturing processes and advanced technology result in unsurpassed product consistency

• Integrated developer and manufacturer of cable, connectors and fiber to ensure overall cable assembly performance
