48 Port DataPatch Cat6A 10Gig Flat Punchdown Panel 2RU DP486X88TGY

About:

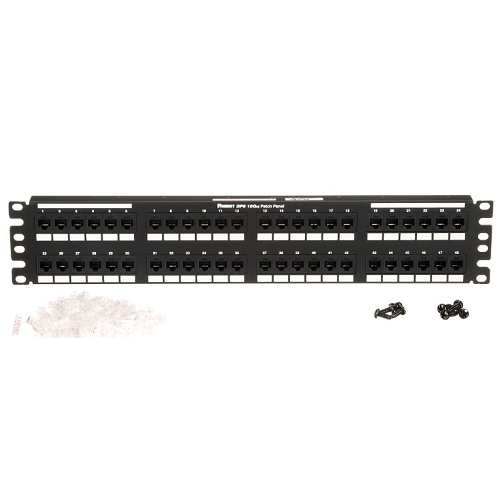

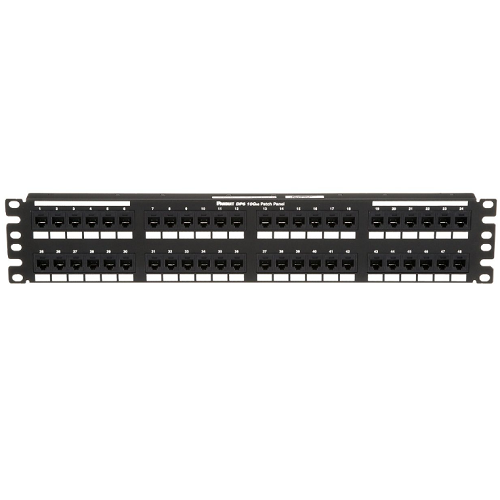

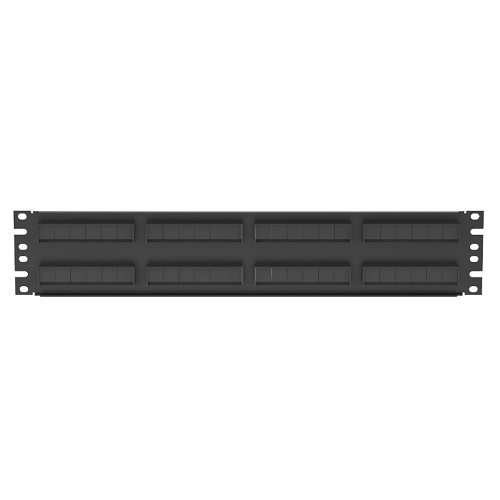

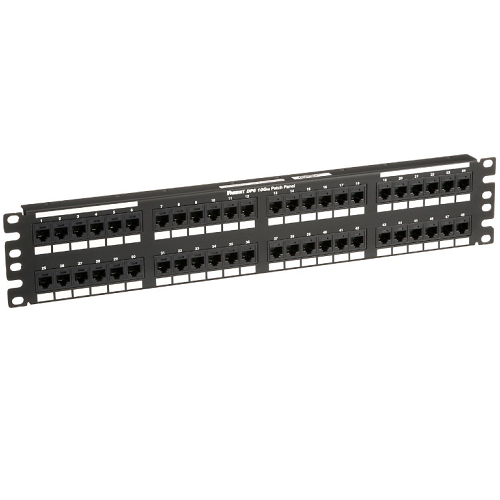

This product is a 48-port patch panel that supports Category 6A cables, capable of handling network speeds of up to 10 Gigabit Ethernet. The "2RU" denotes that it occupies 2 rack units in height in a standard 19-inch rack. The "Flat Punchdown" means that the cables are terminated on the back of the panel in a flat orientation using a punchdown tool.

Also Known As:

• 48-port network patch panel
• 10Gbe patch panel
• Ethernet distribution panel
• Cat6A network patch panel

Common Applications:

• Enterprise data centers
• Large-scale server rooms
• Network operation centers
• Corporate office buildings
• Large-scale telecommunications rooms

Standards:

• ANSI/TIA-568-C.2 for balanced twisted-pair telecommunications cabling and components
• ISO/IEC 11801 for generic cabling systems
• IEEE 802.3an for 10 Gigabit Ethernet over twisted-pair copper (10GBase-T)
• EIA/TIA 310-D for the standardization of racks and panels

Construction:

• Made from robust metal, providing durability and support for the mounted connectors.
• Equipped with 48 RJ45 ports compatible with Cat6A performance standards.

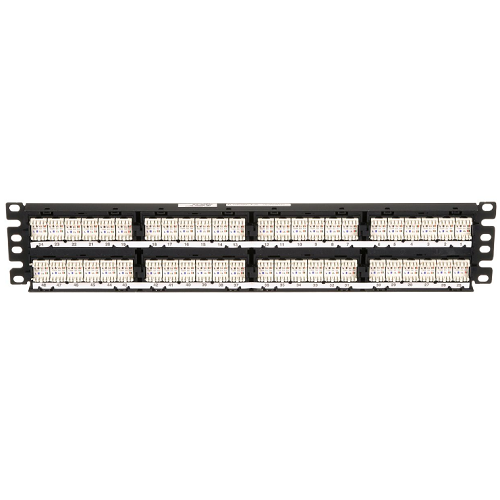

• Flat punchdown termination blocks on the back for secure wire connection.
• Grounding features as per Cat6A requirements, particularly if it's designed for shielded cable use.

Features:

• Compatibility with both shielded and unshielded Cat6A cables.
• Two rack unit size to accommodate 48 ports, optimizing space in densely packed racks.
• Cable management solutions to maintain an organized rack environment.
• Clear labeling areas for each port to simplify network management and troubleshooting.
• Easy-access punchdown arrangement on the back, often with a hinged or removable cover for convenient installation and maintenance.
• Enhanced design to mitigate alien crosstalk (AXT) and improve signal integrity at high frequencies.
