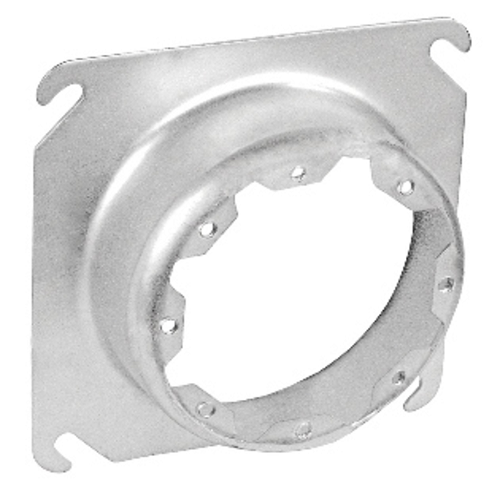

4" Square To Round Perfect Fit Device Ring 1/2" Raised EXR-1/2 (Pack of 100)

Product Information

Specification

About :

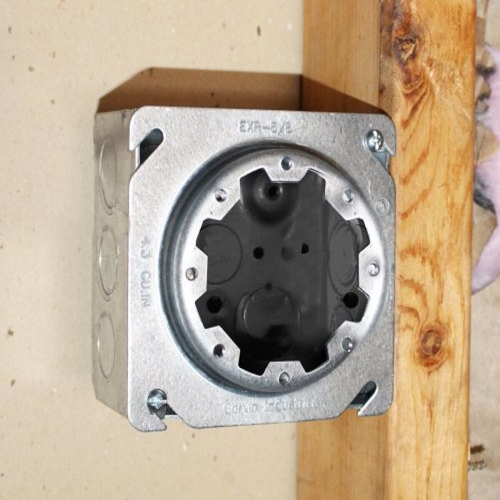

As the name suggests, it's designed to transition from a 4-inch square shape to a round shape. This is often used in electrical installations where devices or conduits need to connect seamlessly between different shaped openings. The "raised 1/2"" refers to the height or depth of the ring, which stands out 1/2 inch from the base surface. This can be crucial for fitting devices at a specific depth or for clearing obstacles. Such rings are commonly made from durable materials like galvanized steel, stainless steel, or heavy-duty plastic. The choice of material often depends on the environment where it will be used. They are designed to be compatible with standard electrical boxes and devices, ensuring a perfect fit and easy installation. The specifications would include details about compatibility with various types of boxes or enclosures.

Also known as:

4-Inch Square-to-Round Electrical Box Adapter Ring, 4" Square Electrical Boxes, 4" Square Conduit Box Leveling Ring, 4-Inch Square to Round Conduit Box Extender.

Specification:

Material : Galvanized Steel
Product Height : 0.5 Inch
Product Width : 4.0 Inch
Cubic Capacity : 3.3 (54.1)
Color : Silver
UPC : 785592986511

Features:

• Dual-direction 8-32 device mounting tabs allow the installer to obtain a perfect fit for signal, lighting and security cameras without having to disassemble canopies fixture
• Not ceiling fan support rated. Static fixture load only
• Fixture Ears 2-3/4" O.C.
