4 Pair 23 AWG Riser Cat6+ Low Smoke Halogen Free Cable Blue 66-246-2M 1000 ft BrakeBox

Product Information

Specification

About :

Category 6+ LSHF CMR cable is designed for applications requiring a Low Smoke Halogen-free (LSHF) construction. This cable does not contain any red list materials in its composition. CAT 6 compliance ensures this cable will support 1000BASE-T Gigabit Ethernet. This cable easily surpasses the Grade 2 requirements specified in the ANSI/TIA/EIA-570-B Residential Telecommunications standard.

Also Known as :

4 Pair Count, 23 AWG Cable, 4 Pair 23 AWG, Cat6+ Cable, CAT6 Cable, Category 6+ Cable, LSHF Cat6+ Cable, CMR Cable, Unshielded Riser Cable.

Performance Compliance:

• UL 444
• CSA C22.2 No. 214-08
• UL 1666
• IEC 60134
• IEC 60332-1
• IEC 60754
• IEC 62821-1
• IEC 62821-2
• IEC 62821-3
• ANSI/TIA-568.2-D
• Article 800, NEC (NFPA 70)

Applications:

• 10BASE-T through 1000BASE-T Ethernet
• Power over Ethernet (PoE) - IEEE 802.3bt Type 1 to 4
• ATM and token ring

Benefits:

• “Future-proofs” the cable installation
• Adjustable tension control on reel prevents over spin and entangling of cable
• CAT 6+ compliance

Features:

• Low Smoke Halogen-free
• Guaranteed 2 dB margin in NEXT, PSNEXT, RL, ACR and PSACR
• UL Listed CMR-LSHF
• BrakeBox payout control system
• Round design without separator

Specifications:

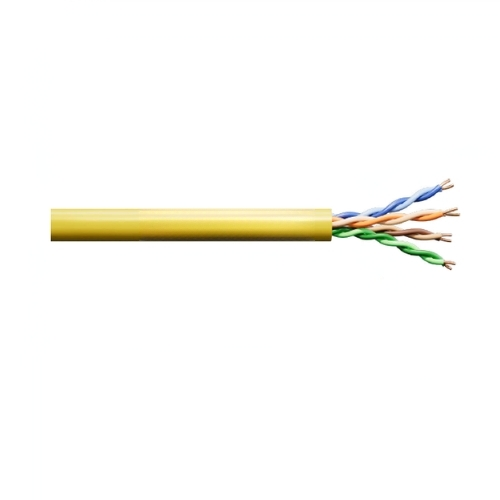

*Image is an illustration purpose only, may not reflect the exact color sold.
