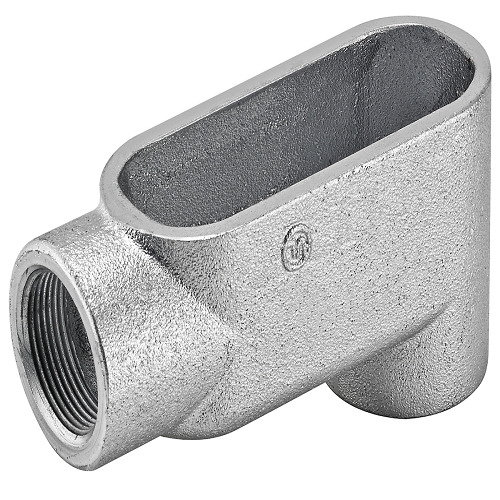

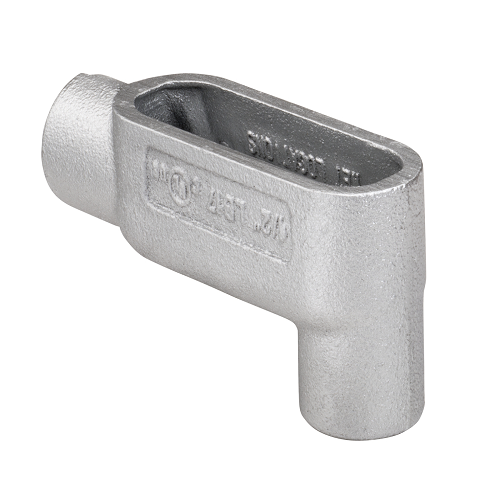

4" Form 7 Gray Iron LB Type Conduit Bodies LB10G7

Product Information

Specification

About :

It's designed for 4-inch conduit pipes, which is a significant size for industrial or large commercial installations. The "LB" type refers to the shape and configuration of the conduit body. This shape is typically used to change the direction of the conduit or to facilitate the pulling of wires through a sharp bend. Made from gray iron, it is durable and suitable for heavy-duty applications. Gray iron is known for its good compressive strength and resistance to wear, making it ideal for electrical conduit systems where durability is crucial. Such conduit bodies are expected to comply with relevant industry standards, such as those set by the National Electrical Code (NEC), Underwriters Laboratories (UL), or other local and international electrical standards.

Also known as:

Type FM7 4-Inch LB Conduit Body ,4-inch Size Gray Iron Conduit Body, 4" LB Gray Iron Electrical Conduit Fitting.

Specification:

Material : Zinc Plated Gray Iron Material
Height : 5.3 Inch
width : 7.1 inch
Weight : 5 LBS
UPC : 751338869141

Features:

• Threaded LB type with cover and gasket
• NPT tapered hubs
• NEMA FB 1/NEMA 3R raintight when installed with cover and gasket
• Suitable for Class 1 Div.2 hazardous locations when installed according to NEC 2014 501.10(B)(4)
