4 F Single-Mode MIC Tight-Buffered Interlocking Armored Cable Riser 004E81-31131-A1

Product Information

Specification

About :

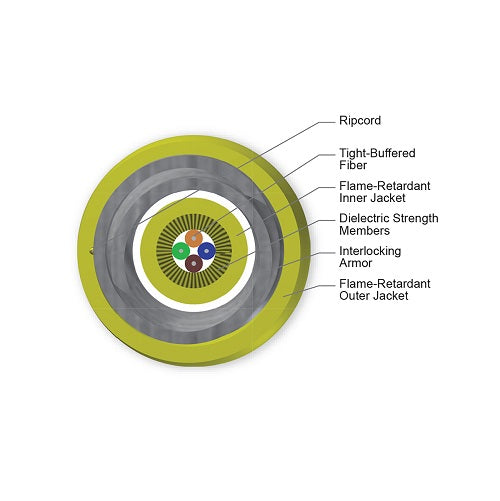

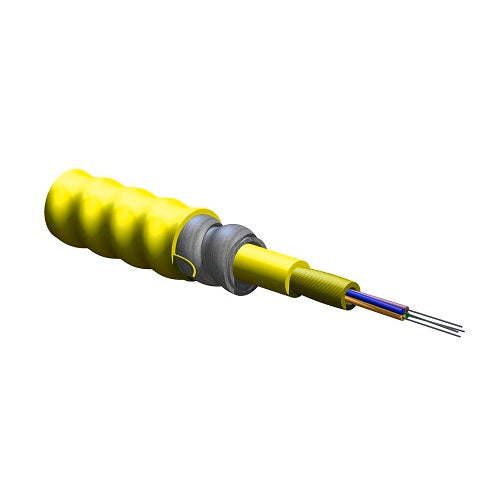

Corning MIC interlocking armored riser cables are designed for use in intrabuilding backbone and horizontal installations. They use individually jacketed 900 µm buffered fibers enabling easy, consistent stripping and facilitating termination. The fibers are grouped into 6-, 12-, or 24-fiber jacketed subunits and surrounded by a dielectric central member. The core is protected by a flexible, spirally wrapped, aluminum interlocking armor that offers easy, one-step installation and up to six times the crush protection of non-interlocking armored cables. With a flame-retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical exposure conditions and applications requiring extra rugged cables. This cable is available in 12 different jacket colors – blue, orange, green, brown, slate, white, red, black, yellow, violet, rose and aqua. The colored jacket allows for easy visual identification of the cables. The standard jacket color will be determined by the dominant fiber type in the cable and will use the standard part numbers shown here. Contact Customer Care at 1-800-743-2675 to order other color options.

Specifications :

Product Number : 004E81-31131-A1
EAN Code : 4056418199184
Environment : Indoor
Cable Type : Tight-Buffered
Product Type : Interlocking Armor
Fiber Category : Single-mode (OS2)
Flame Rating : Riser (OFCR)
Application : General Purpose Horizontal,  Vertical Riser
Fiber Count : 4
RoHS : Free of hazardous substances according to RoHS 2011/65/EU
Central Element : Yarn
Fiber Count : 4
Number of Ripcords : 1
Outer Jacket Color : Yellow
Outer Jacket Material : Flame-retardant
Tensile Strength Elements and/or Armoring - Layer 1 : Dielectric strength members
Inner Jacket Material : Flame-retardant
Tensile Strength Elements and/or Armoring - Layer 3 : Interlocking Armor
Tight Buffer Color : Blue, Orange, Green, Brown
Flame Rating : Riser (OFCR)
Fiber Code : E
Fiber Name : SMF-28e+® fiber
Fiber Type : Single-mode
Performance Option Code : 31
Maximum Attenuation : 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
Wavelengths : 1310 nm / 1383 nm / 1550 nm
Fiber Category : G.652.D

Features :

• Six times crush protection

• Easy, consistent stripping

• Rugged and durable
