Product Information
Specification
About :

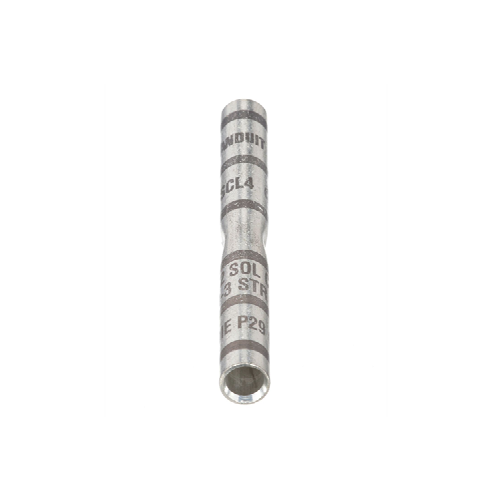

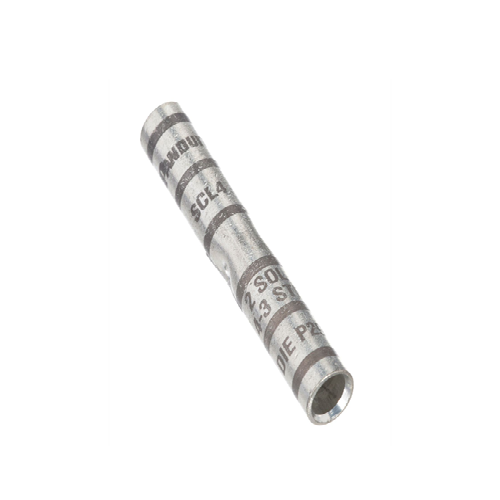

Copper butt splice, long barrel, #4 – #3 AWG STR, #2 AWG SOL wire. 4 AWG wire, which is a very thick wire commonly used in high-amperage electrical applications, a long-barrel butt splice would be necessary to ensure a proper connection. This type of splice is typically crimped onto the wires using a specialized tool to compress the metal barrel around the wires, creating a tight and secure connection. It's important to use the appropriate size and type of splice for the wire gauge to ensure safety and reliability in electrical systems.
Specification :
| Product Type | Compression Splice |
| Sub Brand | Pan-Lug |
| Copper Code Conductor Size (AWG) | #4 |
| Barrel Type | Long |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Standards Met | UL Listed for Power and Grounding Applications in the U.S. and Canada; Meets UL467 Requirements for Grounding |
| Finish/Coating | Tin-Plated |
| Color Code | Gray |
| Burndy Die Index Number | 8 |
| Panduit Die Index Number | P29 |
| Overall Length (In.) | 2.38 |
| Overall Length (mm) | 60.5 |
| Wire Strip Length (In.) | 1 1/8 |
| Wire Strip Length (mm) | 28.6 |
| UL Temperature Rating (°C) | 90 |
| CSA Temperature Rating (°C) | 90 |
• Color coded barrel, internal wire stops,tin plated to inhibit corrosion, premium pull out strength,NEBS
Download PDF Spec Sheet
