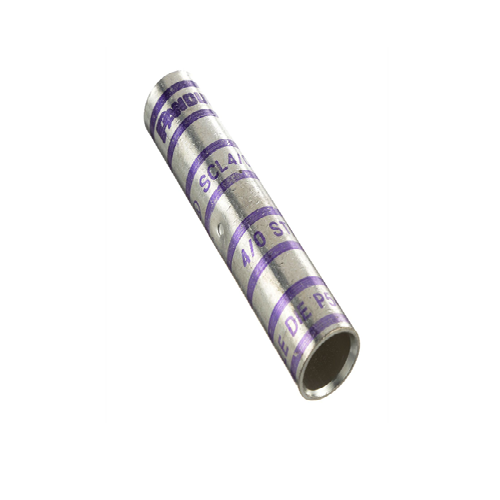

4/0 AWG Compression Connectors - Splices Tin-Plated Copper SCL4/0-X (Pack Of 10)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
4/0 AWG wire, which is a very thick wire commonly used in high-amperage electrical applications, a long-barrel butt splice would be necessary to ensure a proper connection. This type of splice is typically crimped onto the wires using a specialized tool to compress the metal barrel around the wires, creating a tight and secure connection. It's important to use the appropriate size and type of splice for the wire gauge to ensure safety and reliability in electrical systems.
Specification :
| Product Type | Compression Splice |
| Sub Brand | Pan-Lug |
| Copper Code Conductor Size (AWG) | 4/0 |
| Barrel Type | Long |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Standards Met | UL Listed for Power and Grounding Applications in the U.S. and Canada; Meets UL467 Requirements for Grounding |
| Finish/Coating | Tin-Plated |
| Color Code | Purple |
| Burndy Die Index Number | 15 |
| Panduit Die Index Number | P54 |
| T & B Die Index Number | 54 |
| Overall Length (In.) | 3.37 |
| Overall Length (mm) | 85.6 |
| Wire Strip Length (In.) | 1 5/8 |
| Wire Strip Length (mm) | 41.3 |
| UL Temperature Rating (°C) | 90 |
| UL Temperature Rating (°F) | 194 |
Features :
• Color coded barrel, internal wire stops,tin plated to inhibit corrosion, premium pull out strength,NEBS
