4/0 AWG 19 Str Copper Flat Strap EPR/PE Primary UD Cable 100% Insulation Level 260 mil 25 kV

4/0 AWG 19 Str Copper Flat Strap EPR/PE Primary UD Cable 100% Insulation Level 260 mil 25 kV

Application:

• Underground primary distribution circuits where existing duct spacing is limited and reduced cable OD is desired.
• May be used in wet or  dry locations, installed in underground ducts, or direct burial.

Also Known As:

4/0 AWG EPR PE Concentric Neutral Cable, Flat Strap PILC Replacement Cable, Primary Underground Distribution Cable, Medium Voltage EPR Cable, 4/0 AWG Concentric Neutral Power Cable, 4/0 AWG PILC Replacement Power Cable, 5–46 kV Underground Cable, 4/0 AWG Copper Concentric Neutral Cable.

Standards:

• ICEA S-94-649: Standard for Concentric Neutral Rated Cables 5 kV– 46 kV.
• AEIC CS8: Specifications for Extruded Dielectric, Shielded Power Cable, rated 5 kV – 46 kV.

Maximum operating voltage:
• 15 kV – 35 kV, 100% and 133% IL
Maximum conductor operation temperatures:
Wet and dry locations
• Normal: 105 °C
• Emergency: 140 °C
• Short Circuit: 250 °C

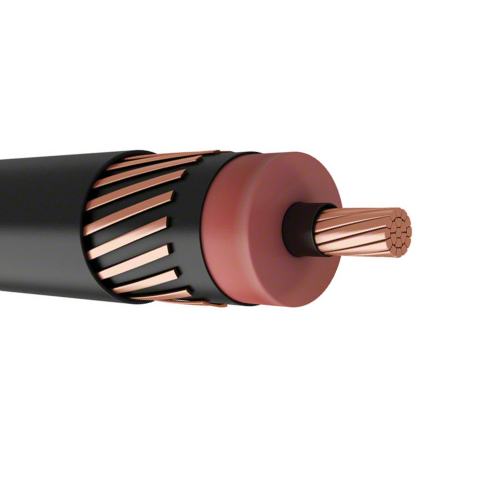

Construction:

• Conductor: Uncoated soft annealed copper Class B compacted stranding per ASTM B496. On request, Filled strand conductor. Sizes: 4/0 AWG – 1000 kcmil.
• Conductor Shield: Extruded semiconducting cross-linked polyethylene per ICEA and AEIC.
• Insulation: High quality, heat, moisture, ozone and corona resistant, thermosetting ethylene propylene rubber (EPR) per ICEA and AEIC..
• Insulation Shield: Extruded Semiconducting cross-linked polyethylene per ICEA and AEIC.
• Shield: Flat wires straps of annealed uncoated copper per ICEA, helically applied and uniformly spaced. Note: Specific flat strap constructions and configuration will vary per customer fault current requirements.
• Jacket: Extruded to fill of Black Liner Low Density Polyethylene (LLDPE) sunlight resistant thermoplastic compound, per ICEA S-97-682.

Features:

• Reduced overall OD.
• True Triple extrusion system, for optimum concentricity, and excellent electric field control.
• Closed handling raw materials system, to eliminate any contact with ambient, until extrusion of insulation and shields.
• Sealed conductor passes the Production Water Penetration tests per ICEA-T-31-610 at 15 psi for 60 minutes.
• Heavy duty mechanical and sunlight resistance jacket.

Specifications:

• Size: 4/0 AWG
• Number of Strands:  19
• Flat Straps Number of Wires mil: 12
• Flat Straps Dimensions mil: 20 x 175
• Jacket Thickness (mil): 50
• Approximate Outside Diameter (In): 1.27
• Approximate Net Weight lb/kft:  1368
