38" X 62" Hole-6 Strips Powerboard 3U Interleaved Power Rails POW3U

Product Information

Specification

Also Known As :

6 hole strips interleaved power tracks,  copper anti-tarnish coating board, Standard single height (3U) Eurocard board

About :

 To provide a more accurate and detailed explanation of "PowerBoard," it would be helpful to have additional context or information about the specific context in which you've encountered this term. Interleaved power rails refer to a technique used in power supply design to improve the performance and efficiency of a power distribution system, especially in high-current or high-power applications. In this context, "interleaved" means alternating or mixing different power rails or phases.

Common Applications: :

 Interleaved power rails are commonly used in various applications, including high-performance computing, data centers, server farms, and high-power electronics, where reliable and efficient power distribution is essential. The goal is to ensure that each phase shares the load evenly and efficiently to provide stable and clean power to the load while minimizing losses and EMI.

Standards:
PowerBoard" could also be the name of a specific product or brand related to power management, electrical components, or other industries.

Construction :

Parallel Operation: In many high-power applications, a single power supply may not provide enough current or voltage to meet the requirements of the load.
Interleaving Phases: Interleaved power rails involve splitting the load into multiple phases or power rails, and each phase is supplied by a separate power supply or converter module.
Benefits: Interleaving offers several advantages, including improved efficiency, reduced output voltage ripple, and better current sharing among the phases.
Reduced EMI: Interleaving can also help reduce electromagnetic interference (EMI) generated by the power supply.
Scalability: Interleaved power rail designs are often scalable, allowing additional phases to be added as needed to accommodate higher power requirements.

 Specification :

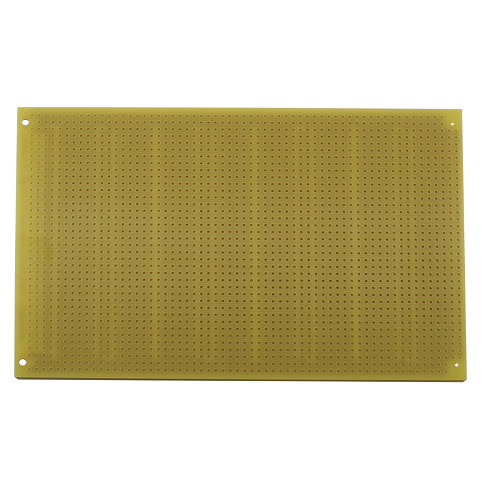

• Etched FR4 glass-epoxy circuit board.
• Single sided, 1oz/ft2 copper with an
anti-tarnish coating for easy soldering.
Lead free and RoHS compatible.
• Holes are drilled on 0.1" (2.54mm) centers.
• 0.037" (0.94mm) holes sized for ICs or
square post headers.
• 38 x 62 holes
• 3.9" wide, 6.3" long, 1/16" thick
(100 x 160 x 1.6mm). .
• Part Number is POW3U

Features :

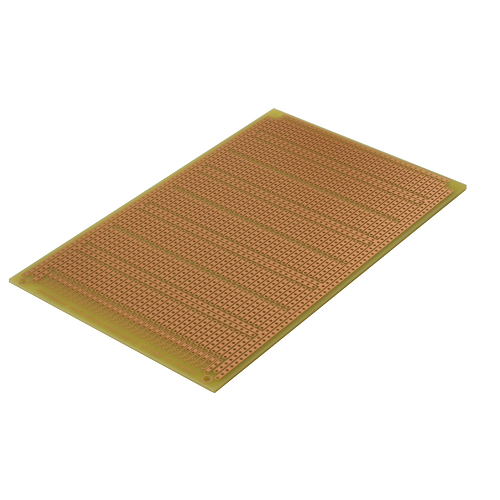

◐ 6 hole strips with interleaved power and ground rail tracks.
◐ Single-sided high-quality FR4 glass-epoxy circuit board.
1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
◐ 38 x 62 holes, 0.037" holes are drilled on 0.1" (2.54mm) centers.
◐ Standard single height (3U) Eurocard/VME size. 3.9" wide, 6.3" long, 1/16" thick (100 x ◐ 160 x 1.6mm). Off-the-shelf 3U size enclosures are available.

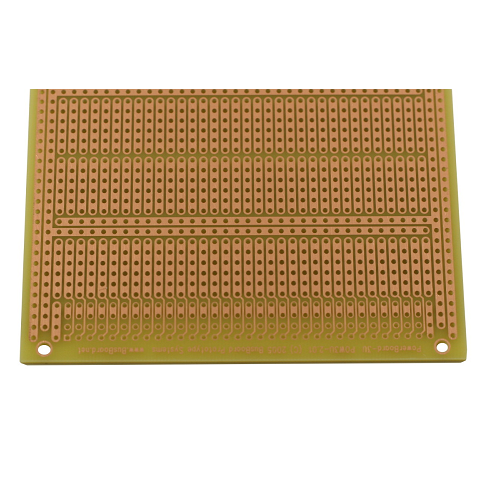

• PowerBoard has interleaved power and
ground rails to easily distribute power to
your circuits.
• The general purpose strip board circuit
pattern with 6 holes per strip is good for
general purpose analog and digital use.
• 0.1" hole spacing for DIP integrated circuits
and headers.
• Standard single height (3U) Eurocard/VME
size. Many off the shelf enclosures and card
cages are available
