36 Fiber RWP Singlemode Dri Lite Loose Tube Single Jacket Armor Fiber Optic Cable 120363D01

Product Information

Specification

About :

Reduced Water Peak singlemode loose tube cables are the product of choice as the backbone in Outside Plant (OSP) environments. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL).

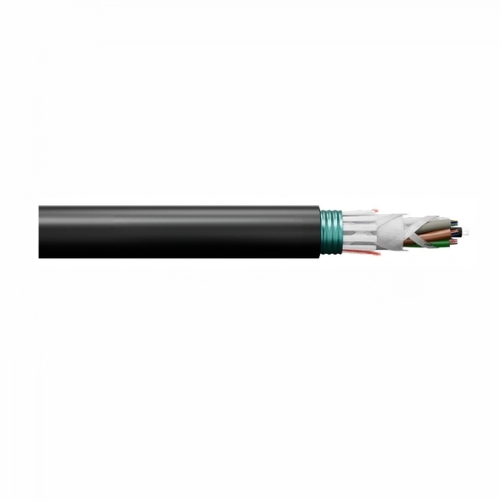

The core is wrapped with flexible strength members covered with a water-blocking tape. A corrugated steel armor is applied and then encased with a black jacket. Rip cords are included under the armor for ease of entry.

Also Known as :

36 Fiber Cable, Outside Plant Cable, Singlemode Cable, Fiber Optic Cable, Gel Free Tube Cable.

Specifications :

Standards Compliance:

• Telcordia GR-20-CORE
• RDUP PE-90 Designation MLT
• ICEA S-87-640-2011
• RoHS-compliant

Applications:

• Direct bury, underground duct and lashed aerial
• Trunk, distribution and feeder cable
• Local loop, metro, long-haul and broadband network

Benefits:

• High fiber density
• Multiple network applications
• Improves compressive strength and rodent protection
• Speeds fiber access and cleanup
