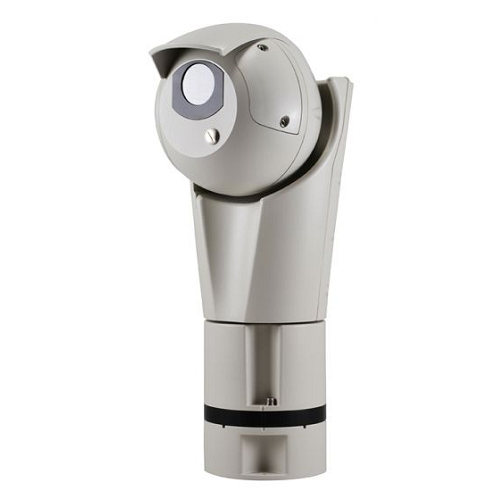

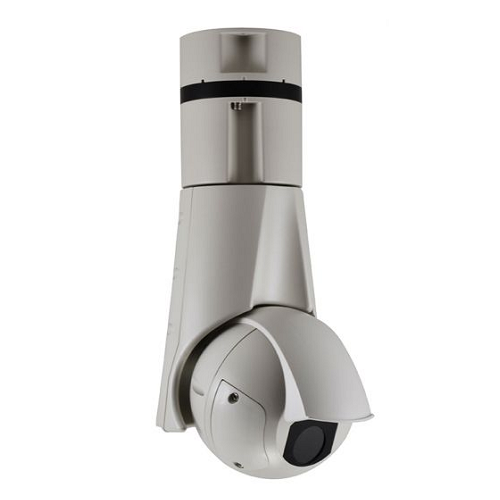

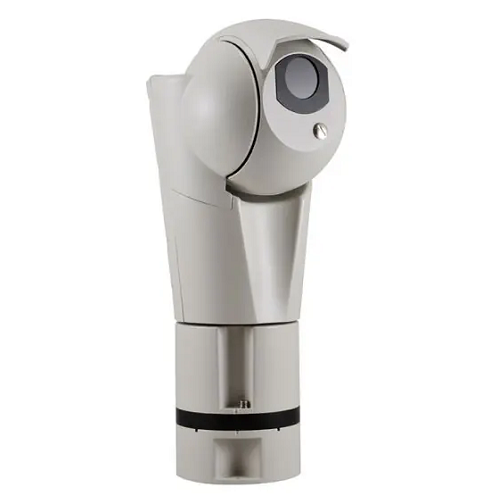

336 X 256 Network Outdoor PTZ Thermal Camera with 19mm Lens UET2ZA000A

Product Information

Specification

ULISSE EVO THERMAL PTZ thermal camera with radiometric functions, 19mm, 336x256, 7.5Hz, 24Vac/dc - PoE 90W. The ULISSE EVO THERMAL is a robust thermal imaging system crafted for continuous, dependable operation in the harshest outdoor environments. Its streamlined, lightweight design ensures maximum strength and reliability, allowing for quick assembly, reduced installation costs, and zero maintenance. Built to withstand extreme conditions, it resists corrosion and operates within a wide temperature range of -40°C to +65°C. Its sturdy construction meets IK10, IP66/IP67/IP68, NEMA TYPE 4X, and TYPE 6P standards, providing comprehensive protection against impact, dust, and water, and can withstand wind speeds up to 230 km/h while maintaining smooth PTZ movement. Approved by Lloyd’s Register Marine Type for maritime applications and compliant with railway standards, the ULISSE EVO THERMAL is versatile for various challenging settings. It supports flexible mounting, including upside-down positioning typical of speed dome cameras, and features quick-fit connectors for Ethernet/PoE, power supply, and I/O, facilitating rapid on-site replacements. Powered by PoE 90W as per IEEE.802.3bt standards, it is compatible with widely available power injectors and backward-compatible with PoH injectors (such as OHEP90INJ or OHEP90INJO). This makes ULISSE EVO THERMAL an ideal choice for reliable, continuous surveillance in demanding conditions.

Features:

• Designed to resist and last
• Thermal camera with radiometric functions
• Unbeatable solution for outdoor applications
• PoE compatible with standard IEEE.802.3bt
• ULISSE EVO THERMAL PTZ thermal camera with radiometric functions, 19mm, 336x256, 7.5Hz, 24Vac/dc - PoE 90W

Specifications:

• Product Type: PTZ Thermal Camera
• Resolution: 336 X 256
• Lens Size: 19mm
• Part Number : UET2ZA000A
