32A 480VAC 10-Gang Portable Power Distribution Assembly 35kAIC

Product Information

Specification

32A 480VAC 10-Gang Power Distribution Assembly

A rugged and efficient 10-Gang Power Distribution Assembly is designed for high-performance, 3-phase power distribution in industrial and temporary power applications. Engineered for durability and reliability, it delivers up to 300A at 480VAC with robust circuit protection and premium stainless steel construction.

Power Capacity:

• 10-Gang assembly rated at 300A, 480VAC (380–480VAC, 50/60Hz)

• 3-phase, 3-wire + ground

• 35kAIC RMS symmetrical short-circuit rating

Receptacles:

• (10) 32A, 480VAC (380/440VAC, 50/60Hz) receptacles

• Compliant with IEC 60309-1 & -2 standards

Circuit Protection:

• (10) 30A circuit breakers, rated 35kAIC @ 480VAC

• Other trip and AIC ratings available upon request

Input Power:

• (1 set) Cam-type single-pole male receptacles

• Rated 400A, 600VAC (3-phase + ground)

• Color-coded: Green (Ground), Brown, Orange, Yellow (Line Phases)

Construction:

• All major components made from high-grade stainless steel for superior corrosion resistance and long service life

• Includes: Enclosure, access cover, outlet frames, on/off rods, interlock mechanisms, contact terminal screws & springs, snap covers, and fasteners

Also known as:

Distribution reefer outlet assembly, 32 amp reefer assembly, 10 gang assembly, 480V distribution tree, Portable Reefer Outlet, 10 gang PDB.

Product Details:

Features:

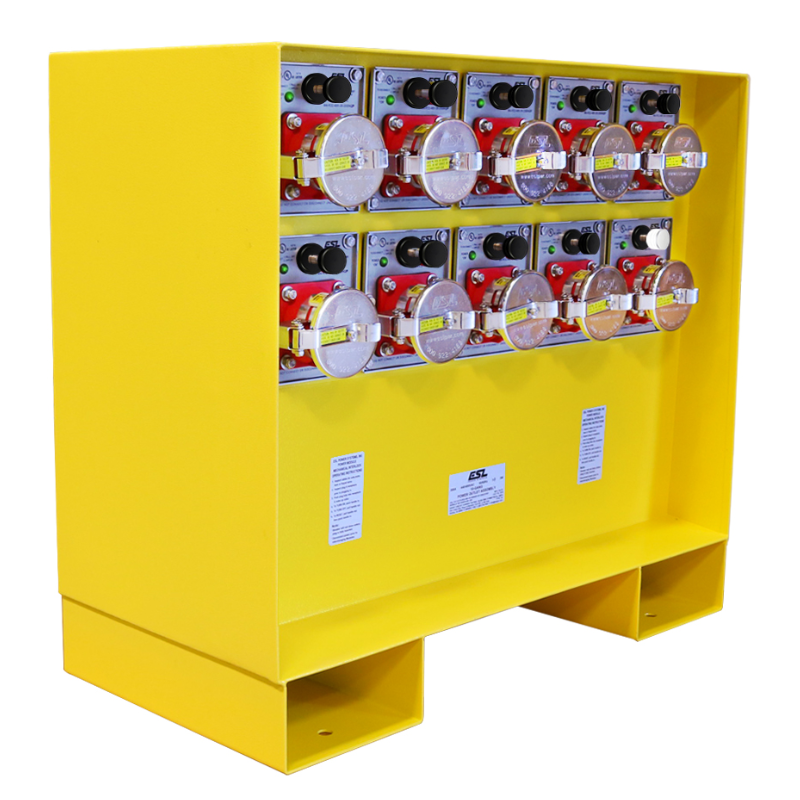

• UL Listed 10-gang assembly complete with UL Listed safety-interlocked outlets each containing an integral 30A circuit breaker
• Type 4X enclosure manufactured from 14GA seamwelded stainless steel (powder-coated yellow)
• (10) safety-interlocked 32A outlets #1706-56ANP factory wired to power distribution block (PDB)

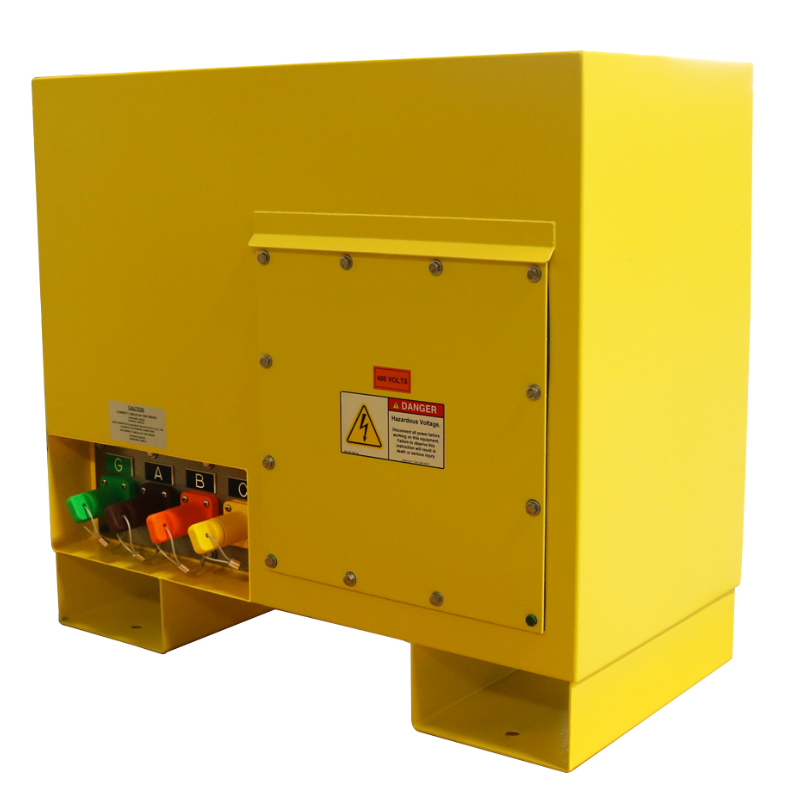

• (1) Set of 400A male Camlock-style receptacles for incomming power
• UL Listed circuit breaker rated 35kAIC @ 480VAC provides short circuit & overcurrent protection at each outlet
• Each oultet’s actuator rod allows user to turn on/off and reset tripped breaker
• Gasketed bolt-on access cover with drip shield
• Forklift pockets for easy mobility; pockets include anchor bolt holes for permanent installation

Approvals:

• UL Listed modules and assembly
• UL 489 Listed / CSA certified molded case circuit breakers
