32/400A 480VAC 20-Gang Portable Distribution Tree Reefer Outlet 35kAIC

Product Information

Specification

32A/400A 480VAC 20-Gang Power Distribution Tree

Power up large-scale operations with this 20-Gang Distribution Tree, engineered for high-capacity industrial applications. Built with rugged, corrosion-resistant stainless steel components, this unit delivers 600A 480VAC 3-phase power with enhanced circuit protection and durable construction—ideal for harsh work environments.

• High-Capacity Power Distribution:

  • 20-Gang assembly rated at 600A, 480VAC (440–480VAC, 50/60Hz)

  • 3-phase, 3-wire + ground configuration

  • 35kAIC RMS symmetrical amps for maximum fault current protection

• Heavy-Duty Receptacles & Compliance:

  • (20) 32A 480VAC receptacles, compliant with IEC 60309-1 & -2

  • Designed for stable power delivery in demanding conditions

• Robust Circuit Protection:

  • 30A trip circuit breakers with 35,000 AIC @ 480VAC

  • Optional trip and AIC ratings available upon request

• Input Power:

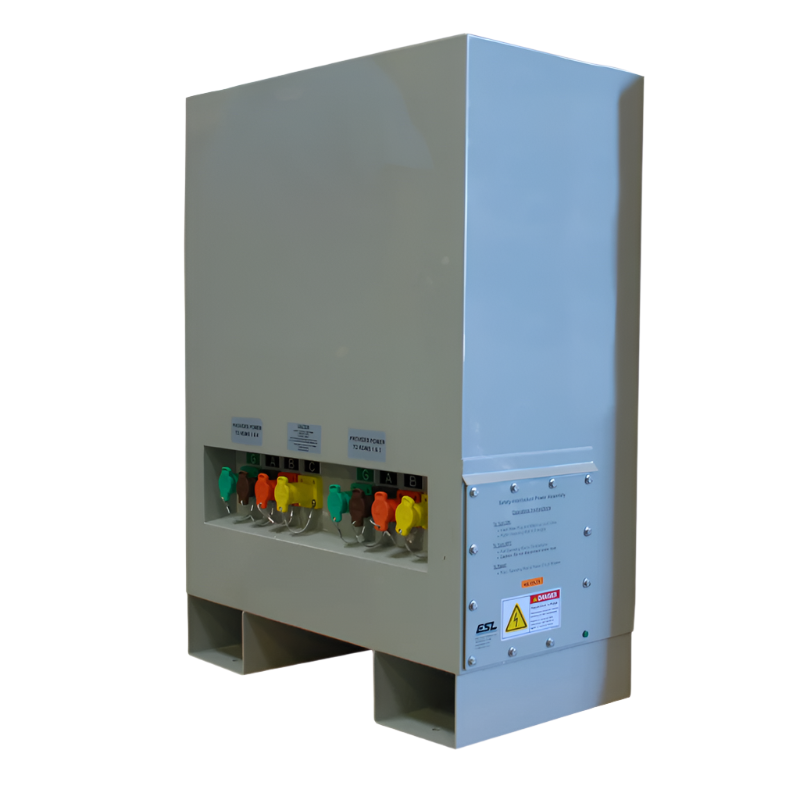

  • Equipped with (1 set) 400A Cam-type single pole male receptacles, rated at 600VAC

  • Color-coded cams: Green (ground), Brown, Orange, Yellow (phases)

• Durable Stainless Steel Build:

  • Enclosure, outlet frames, access covers, interlocks, rods, contact screws, springs, snap covers, and fasteners—all stainless steel

  • Designed for Type 4X environments, providing resistance to moisture, corrosion, and impact

Also known as:

Distribution reefer outlet assembly, 32 amp reefer assembly, 20 gang assembly, 480V distribution tree, Reefer Outlet, 20 gang PDB.

Product Details:

Features:

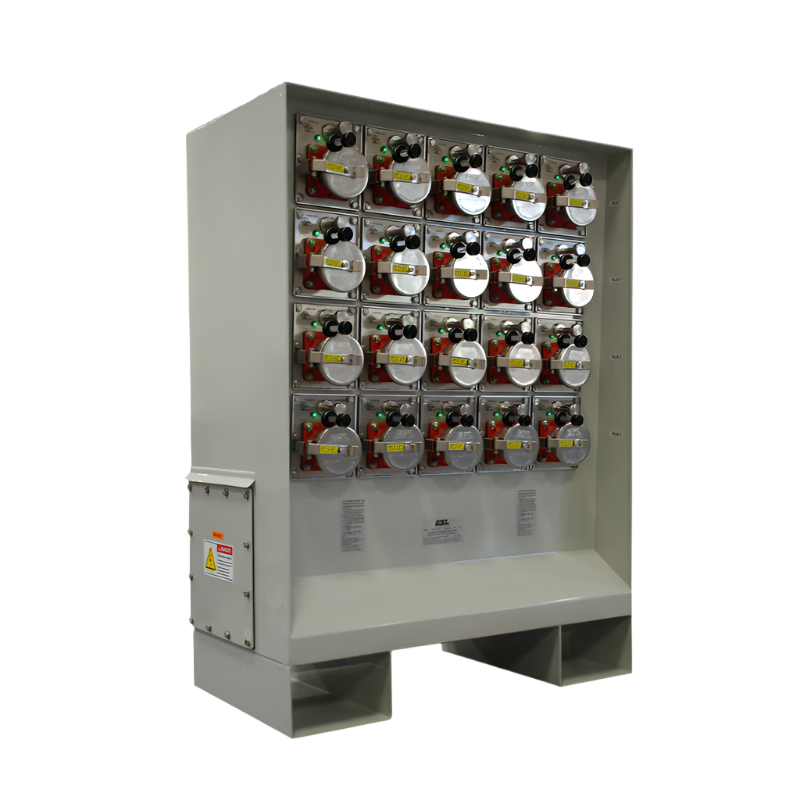

• UL Listed 20-gang assembly complete with UL Listed safety-interlocked outlets each containing an integral 30A circuit breaker
• Type 4x enclosure manufactured from 14GA seam-welded stainless steel powder-coated texture grey (RAL7038)
• (20) safety-interlocked outlets #1700-56ANP factory wired to power distribution block (PDB)
• UL Listed circuit breaker rated 35kAIC @ 480VAC provides short circuit & overcurrent protection at each outlet
• Each oultet’s actuator rod allows user to turn on/off and reset tripped breaker
• PDB accepts incoming cable range of (2) 500kcmil – #4AWG per phase line side
• Gasketed bolt-on access cover
• Forklift pockets for easy mobility; pockets include anchor bolt holes for permanent installation

Approvals:

• UL Listed modules and assembly
• UL 489 Listed / CSA certified molded case circuit breakers
