30 AWG Wrap-Unwrap Tool HW-UW-30
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Wire Wrap |
| UPC | 811490013155 |
| Wrap Type | Modified |
| Wrap Wire Gauge | 30 AWG |
| Maximum Insulation Diameter | 0.027" |
| Wrap Terminal Hole Diameter | 0.036" |
| Wrap Terminal Hole Depth | 0.75" |
| Wrap Outside Diameter | 0.125" |
| Wrap Post Size | 0.025" |
| Unwrap Wire Gauge | 24-32 AWG |
| Unwrap Terminal Hole Diameter | 0.038" |
| Unwrap Terminal Hole Depth | 1" |
| Unwrap Outside Diameter | 0.093" |
| Handle Type | Aluminum |
| Dimensions | 5.63 in x 0.5 in x 0.5 in |
| Part Number | HW-UW-30 |
30 AWG Wrap-Unwrap Tool
Description:

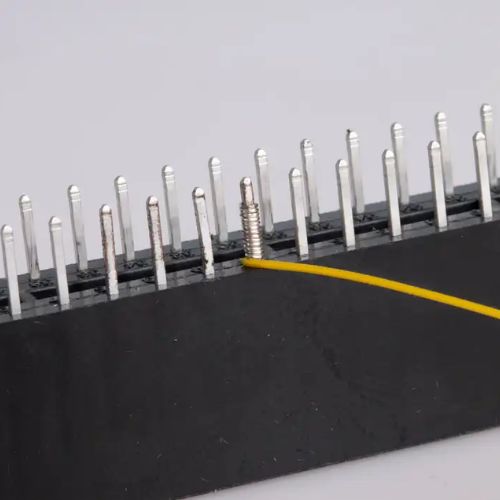

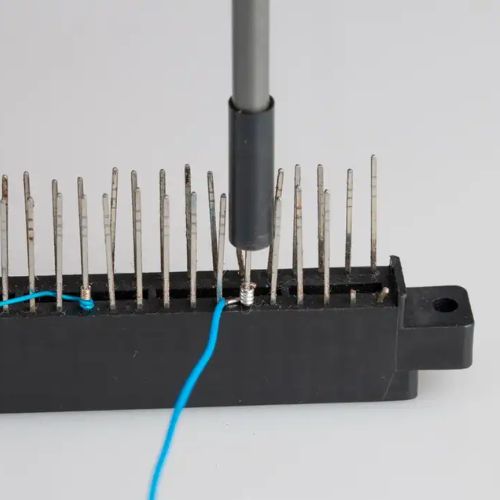

This hand wrap tool is designed for wrapping or unwrapping wire on binding posts and is ideal for use with 30 AWG (0.25 mm diameter) wire.
Features:
• Designed for 0.025" (0.63 mm) square terminals with 0.100" (2.54 mm) center-to-center pin spacing
• Compact and convenient tool for precise wire wrapping in tight spaces where power tools cannot be used

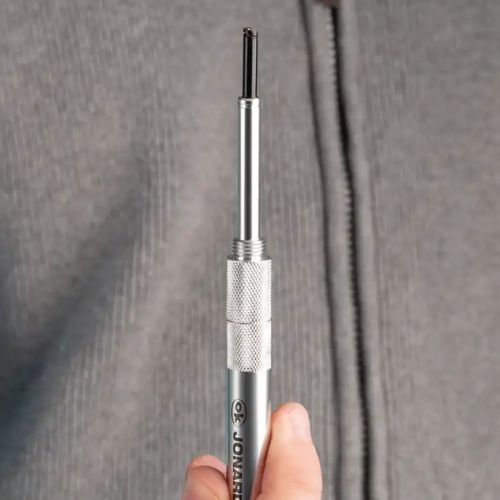

• Easily switch between wire wrapping and unwrapping by rotating the end cap
