30 AWG Kynar Yellow Wire R30Y-1000 (1000 FT)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Kynar Wire |
| UPC | 811490012776 |
| Insulation Type | Kynar |
| Insulation Thickness | 0.005" (0.127 mm) |
| Wire Gauge | 30 AWG (0.25 mm) |
| Overall Diameter | 0.020" (0.50 mm) |
| Standards | UL 1423 |
| Voltage | Not Rated |
| Reel Length | 1000 ft (304.8 meters) |
| Dimensions | 2.85 in x 2.85 in x 2.4 in |
| Part Number | R30Y-1000 |

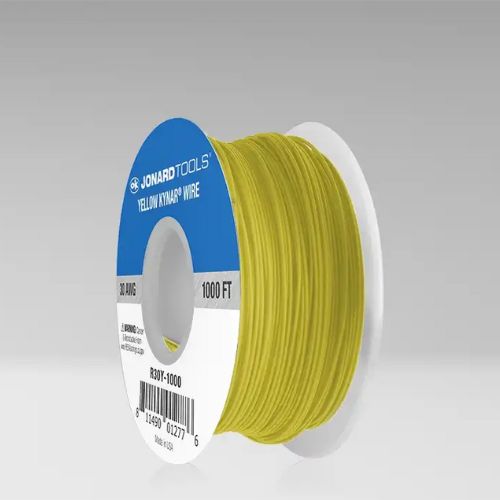

30 AWG Kynar Yellow Wire
Description:

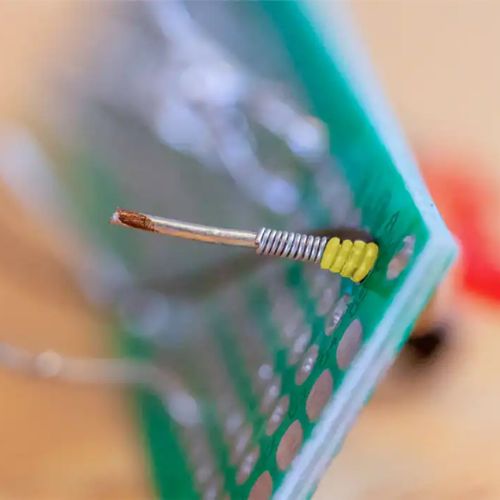

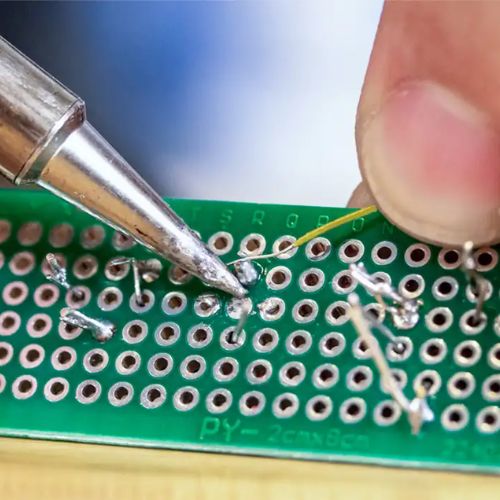

Kynar wire is commonly chosen for applications that demand flexibility, strength, and low weight, making it ideal for use in wire wrap, power supplies, medical devices, and aerospace systems. Its lightweight construction and small diameter also make it a preferred option for circuit board prototyping. Beyond these advantages, Kynar insulation delivers outstanding mechanical performance across a wide temperature range and resists a broad spectrum of chemicals, including most acids, bases, alcohols, halogenated solvents, and both aliphatic and aromatic hydrocarbons. Thanks to these qualities, Kynar wire is exceptionally well-suited for even the most demanding environmental conditions.
Features:
⦿ Silver-plated OHFC (oxygen-free high-conductivity) copper conductor ensures superior electrical conductivity and flexibility
⦿ Kynar insulation delivers high heat resistance (up to 105 °C) and outstanding abrasion durability
⦿ Complies with or exceeds UL 1423 standards
